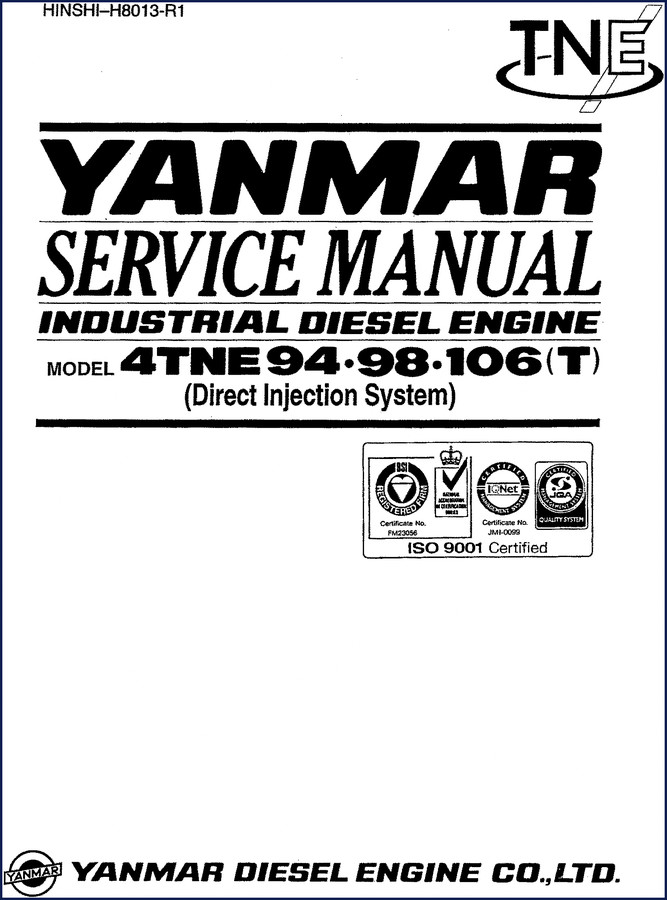

Yanmar 4TNE94, 4TNE98, 4TNE106 Service Manual

If you’ve ever pulled a head off a Yanmar diesel and realized your torque chart came from a forum post instead of the factory print, you know the feeling. That’s not how engines go back together correctly. The Yanmar 4TNE94, 4TNE98, 4TNE106 Service Manual is the exact same 183-page document the dealer techs use when they bill out a job. No guesswork, no sketchy aftermarket reprints—just the original OEM procedures that keep these industrial engines running under load.

I’ve been turning wrenches for 28 years, ASE Master in my back pocket, and I’ve seen what happens when someone tries to button up a 4TNE98 with a generic chart. Stripped threads, coolant leaks, and a lot of wasted time. This manual gives you the tightening torques for standard bolts and nuts from section 1.8, the valve clearance specs from section 3.5, and the fuel injection timing adjustment from section 3.7. It’s all there—you don’t have to guess.

Engine Body Disassembly and Reassembly

Section 4 covers the cylinder head, gear train, camshaft, and cylinder block in full detail. You get component breakdowns, disassembly procedures, and reassembly procedures with specific servicing points. For example, the cylinder head section (4.2) includes valve seat correction and valve guide replacement—stuff the aftermarket manuals skip. The manual also details the piston pin bushing replacement and cylinder bore correction. If you’re rebuilding a 4TNE94 or 4TNE106T, you need this level of detail to get the clearances right.

What Torque Specs Are Listed in the Manual?

Section 1.8 provides tightening torques for standard bolts and nuts, but the real value is in the specific torque values scattered throughout the book. The turbocharger section (8) for the 4TNE106T lists separate tightening torques for the waste gate and housing. The cylinder head bolt torques are called out in the reassembly procedure—don’t trust a third-party chart. This manual includes the factory’s exact numbers, including the sequence for tightening. If you need the charge pressure spec, that’s in the troubleshooting section (2.2) alongside the compression pressure measurement method.

183 Pages of Factory Service Data

The manual is 183 pages thick, and every page serves a purpose. Section 1.2 gives the full specifications for all three models: 4TNE94, 4TNE98, and 4TNE106 (including the turbo variant). You get engine nomenclature, external views, and structural descriptions. Section 1.3 covers fuel oil, lubricating oil, and cooling water specifications. There’s a periodic maintenance schedule in section 3.13 that tells you exactly when to inspect the fan belt, coolant level, and valve clearances. No fluff—just data you can use on the shop floor.

Check the Fuel Injection Timing Before Assembly

Fuel system timing on these Yanmars is critical. Section 3.7 walks you through the inspection and adjustment procedure for the fuel injection timing. You also get the fuel injection valve pressure and spray pattern inspection (3.6), and a full breakdown of the fuel injection pump and fuel feed pump in section 7. The manual includes a fuel system diagram (7.2(1)) so you can trace lines before you start pulling parts. If you’re dealing with a no-start or low-power complaint, the quick reference troubleshooting table in section 2.1 will save you hours of diag time.

Cooling System: Factory Inspection Procedures

Section 6 is the cooling system section. It starts with the cooling water system diagram and moves right into the water pump components. There’s a dedicated procedure for inspecting water leaks from the cooling water system and radiator (section 3.3), plus fan belt tension inspection and adjustment (3.4). The cooling water pump servicing points in section 6.4 tell you exactly which seals to replace and what to check for cavitation. Overheating a 4TNE98 on a generator set costs real money—this manual helps you avoid that.

Lubrication and Electrical Diagnostics

The lubrication system section (5) covers the trochoid pump components, disassembly, and servicing points. You get the oil inspection procedure (3.1) and the full lubrication system diagram. For electrical, section 3.9 covers sensor inspection—crank position, oil pressure, coolant temp sensors. The battery inspection procedure (3.10) includes load testing and terminal cleaning. There’s also a warning in the precautions section (0.3(F)) about handling electrical parts: never disconnect the battery while the engine is running, and always use genuine connectors. That’s the kind of detail that keeps a job from turning into a fire hazard.

Who This Manual Is For

If you’re a home-garage DIYer pulling a Yanmar out of a skid steer or a generator, this manual is going to keep you from making a costly mistake. If you’re a pro turning wrenches for a rental fleet or irrigation company, you need the factory data to bill the job right the first time. The manual covers the 4TNE94, 4TNE98, and 4TNE106(T) with direct injection—the same engines used in Case, New Holland, and other equipment. It’s not a generic manual; it’s the OEM document from Yanmar, ISO 9001 certified plant.

Related manuals you might need: Yanmar 4TNE94, 4TNE98, 4TNE106 Service Manual – OEM Factory Specs, Yanmar 4TNE94, 4TNE98, 4TNE106 Service Manual – OEM Specs, Yanmar 4TNE98, VI070 Technical Manual – OEM Parts Catalog. For general transmission service, see Manual Transmission and Manual Transmission on Wikipedia.

Does this manual cover the 4TNE106T turbo model?

Yes. Section 8 is dedicated to the turbocharger for the 4TNE106T, including structure, function, service standards, tightening torques, periodic inspection, and waste gate valve adjustment.

What is the compression pressure specification?

Section 2.2 gives the standard compression pressure and engine speed for measurement. The manual explains how to measure compression pressure and how to interpret the values for troubleshooting.

Are wiring diagrams included in the manual?

The manual does not contain full wiring diagrams for the equipment harness, but it does include sensor inspection procedures (section 3.9), battery inspection (3.10), and warnings for electrical parts in the precautions section.

How is the manual formatted – PDF or printed?

This is a digital PDF download of the factory service manual. It is fully searchable and can be printed as needed. The original file is 183 pages, publication number HINSHI-H8013-R1, with a correction history dated March 1998.

Download the Factory Manual now and stop relying on internet guesses. Your Yanmar 4TNE94, 4TNE98, or 4TNE106 engine deserves the same documentation the factory ships to dealers. Get it, print the pages you need, and get back to work with the right numbers in hand.
