AUSA C 200 H X4 Parts Catalog – Factory OEM Exploded Diagrams

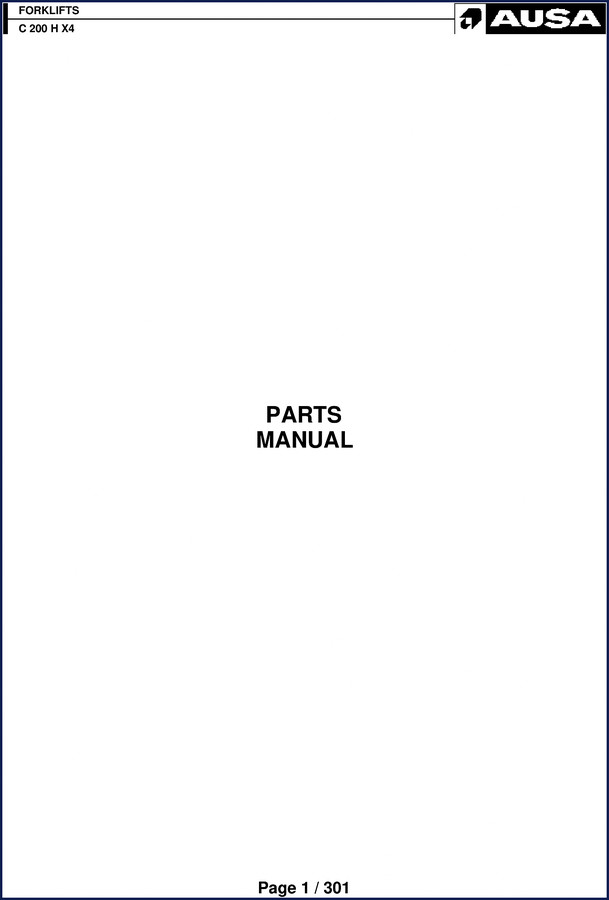

You’re trying to order a cylinder head gasket for an Isuzu 4LE2 in a C 200 H X4 and the aftermarket catalog gives you a blurry scan with three different reference numbers for the same bolt. I’ve watched techs waste hours cross-referencing that junk. This AUSA C 200 H X4 Parts Catalog kills the guesswork. It’s the actual factory PDF, 301 pages, straight from AUSA. Every part number matches the machine as it left the factory floor.
Page 4 shows the cylinder head assembly. You get the head cover, head-to-cover gasket, and nine M6x20 bolts plus four M6x45 bolts – all with AUSA reference numbers. No chasing aftermarket supersessions. The filters kit on page 2 lists the complete set as KF.20400RE00. That alone saves a return shipping fee.
I’ve torqued enough head bolts to know that using the wrong shank length can drop a valve. This catalog keeps you on the correct part.
301 Pages of Exploded-View Parts Breakdown
The manual is organized by system. Engine (ISUZU 4LE2) runs over twenty subsections: cylinder head, level gauge, oil pan, engine gasket kit, acoustic pump coupling, hydrostatic pump, exhaust, air filter, engine supports, accelerator pedal, fuel tank, radiator. Transmission covers inching pedal, hydrostatic motor, reduction box, COMPEN system, and then full front axle, front wide axle, and rear axle sections each with ring & pinion, differential, casings, wheel hub, and brake disc in multiple parts. Brake section has footbrake parts. Steering splits into four parts plus hydrostatic steering. Wheels list standard and optional on-road, solids, flat. Then chassis, body with sheets, counterweight, seat, cab shutter, engine guard, joystick lever. Three separate cab versions – opened, half-closed, closed – each with six to nine sub-parts. That level of detail is why you want the factory book.
Engine (ISUZU 4LE2) – Cylinder Head and More
This section covers the 4LE2 block down to every bolt. Page 4 lists cylinder head cover gasket IZ.10020.00, head cover bolts in two lengths (M6x20 and M6x45), plus the oil filler cap assembly. The level gauge subsection on page 5 shows the guide tube, nipple, and gasket. Oil pan, engine gasket kit, radiator – all with separate diagrams. If you need the acoustic coupling or hydrostatic pump, it’s there. The part numbers are AUSA-approved cross-references to Isuzu originals. That matters when you’re ordering from an engine parts house.
Does This Catalog Cover the Brake System?
Yes. The Brake section has footbrake parts in three subsections. The Transmission front axle and front wide axle each include brake disc parts – three parts each. Rear axle also has its own brake disc breakdown. If you’re replacing pads, rotors, or hydraulic components, the exploded views show exactly which shims and o-rings you need. No guessing.
Check the Filters Kit First – Page 2
Page 2 shows the maintenance filters kit with reference KF.20400RE00. It’s one part number for the complete set – oil, fuel, air filters. Before you start ordering individual filters, look at that kit. AUSA designed it as a one-box service item. I’ve seen guys order three separate filters only to find the kit was cheaper and included a gasket they missed. The manual keeps you from that mistake.
Transmission (Front Wide Axle): What’s Included
The front wide axle subsection lists ring & pinion, differential, casings, wheel hub, and brake disc. The standard front axle is separate – same breakdown. Rear axle goes six parts deep. If you’re rebuilding a differential or swapping a hub, the exploded diagram gives you the bearing numbers and seal references. That’s data you won’t find in a generic parts lookup.
Now, let me be straight about where this manual fits. It’s a parts catalog, not a service manual. That means exploded diagrams and part numbers, not torque specs or repair procedures. If you need assembly torques or step-by-step rebuild instructions, you want the AUSA service manual. But if you’re ordering parts for a C 200 H X4, this catalog is the only source that matches every nut and bolt to the machine. Aftermarket catalogs miss details – like the difference between M6x20 and M6x45 head bolts. Page 4 won’t let you confuse them.
- Does this catalog include wiring diagrams?
- No.
- How do I find the correct oil filter part number?
- Turn to page 2 for the filters kit reference KF.20400RE00. That kit includes the oil filter, fuel filter, air filter, and necessary gaskets. But verify your machine’s serial number – AUSA introduced running changes. I’ve had a shop order the wrong kit because they ignored the serial number range listed in the manual. Check the diagram against your machine before you place the order. The book shows the exact components for your configuration.
Get the factory data and stop chasing aftermarket misfires. Download the Factory Manual from AutoRepairManuals.
