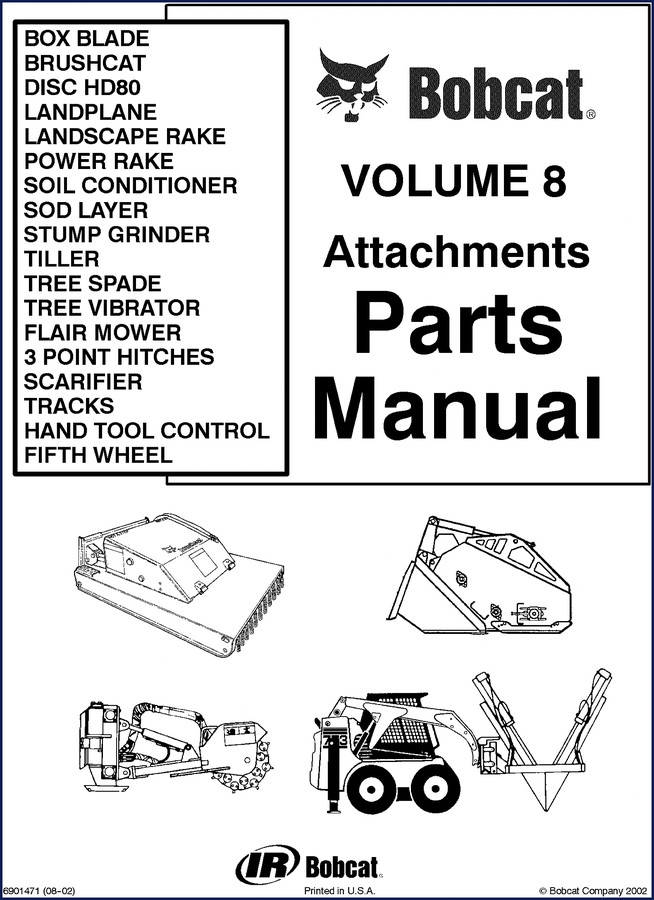

Bobcat BOX BLADE, BRUSHCAT, DISC HD80, LANDPLANE 2002 Parts Catalog

If you’ve ever ordered a part for a Bobcat attachment and got the wrong one because you misread a worn-out sticker or relied on a third-party parts list that didn’t match, you know the frustration. That’s exactly why this factory 2002 Parts Catalog exists. It’s Volume 8 of the Bobcat attachment series and covers the Bobcat BOX BLADE, BRUSHCAT, DISC HD80, LANDPLANE, LANDSCAPE RAKE 2002 Parts Catalog. All 491 pages are original OEM prints — not a recompile or aftermarket copy.

What This Parts Catalog Covers

This manual is Volume 8 of the Bobcat attachment parts series. It contains factory exploded views and part numbers for BOX BLADE, BRUSHCAT rotary cutters, DISC HD80, LANDPLANE, LANDSCAPE RAKE, POWER RAKE, SOIL CONDITIONER, SOD LAYER, STUMP GRINDER, TILLER, TREE SPADE, TREE VIBRATOR, FLAIR MOWER, 3 POINT HITCHES, SCARIFIER, TRACKS, HAND TOOL CONTROL, and FIFTH WHEEL. The volume index on page 2 shows the full scope. Each section is broken down by assembly with cross-referenced part numbers.

BRUSHCAT Assembly Breakdown – Pages 11-60

For the BRUSHCAT, this catalog covers the 60″ rotary cutter in detail. You get the hydrostatic motor assembly (pages 24-26), the gearbox (pages 37-38), shutoff valve (page 39), and front roller (pages 43-44). There’s also a separate section for the 60″ BRUSHCAT with dual-output gearbox (pages 51-54) and single-output (page 55). The kit attachments plus kit is on pages 57-59. If you need part numbers for the hydrostatic motor or gearbox, you’ll find them here with OEM references.

BOX BLADE and Cylinder Parts: Factory Specs

The BOX BLADE section starts on page 11. It includes the tire mount assembly (pages 15-16), cylinder (pages 17-21), and valve assembly (page 20). There’s also a specific segment for the BOX BLADE on the 5600 Toolcat (pages 21-22). All part numbers are listed with illustrations so you can match components visually. This is the only place to get original Bobcat numbers — aftermarket catalogs often scramble them.

3 Reasons to Choose OEM Documentation

First, every part number in this catalog matches Bobcat’s factory system. Second, the manual shows superseded or obsolete parts with revision notes. Third, the illustrations are drawn from engineering blueprints, not photographs of used parts. That means you can identify a bolt, bushing, or seal by its exact shape and thread count. Third-party parts lists skip those details, leading to wrong orders and returns.

DISC HD80 and LANDPLANE Sections

The DISC HD80 (and HD80SC) appear on pages 61-70. The LANDPLANE runs from page 71 to 82, including the cylinder assembly on pages 71-72. The 72″ LANDPLANE has its own sub-section. Both sections give you the same factory-level detail: exploded views, part numbers, and quantities per assembly. The DISC HD80 uses a disc system similar to Disc Brakes, and the hydraulic calipers are comparable to Brake Caliper Assembly used in automotive applications, but the part numbers here are Bobcat-specific.

For other Bobcat attachment manuals, see the Bobcat BOX BLADE, BRUSHCAT, DISC HD80, LANDPLANE, LANDSCAPE RAKE 2002 Parts Cata and related volumes:

• Bobcat T3571, T3571L 2005 Parts Catalog – OEM Factory Specs
• Bobcat S/N 5310, S/N 5309 2005 Parts Catalog – OEM Factory Specs

Frequently Asked Questions

Does this manual include part numbers for the BRUSHCAT gearbox?

Yes, pages 37-38 list the gearbox assembly with all part numbers.

Can I use this for a 2005 Bobcat attachment?

This is a 2002 catalog. Bobcat changed part numbers over time. Use it for 2002-era attachments. For 2005 models, you should get the correct year manual. Cross-referencing might work for some components, but the manufacturer updates parts regularly. I’ve seen techs order wrong parts because they used an old catalog. If your attachment serial number is from 2002 or earlier, this manual is correct. If not, get the Bobcat T3571, T3571L 2005 Parts Catalog – OEM Factory Specs or the Bobcat S/N 5310, S/N 5309 2005 Parts Catalog – OEM Factory Specs.

Is this a printed book or a PDF download?

You are purchasing a digital download. PDF format, 491 pages.

What attachments are covered besides the ones in the title?

Volume 8 also covers LANDSCAPE RAKE, POWER RAKE, SOIL CONDITIONER, SOD LAYER, STUMP GRINDER, TILLER, TREE SPADE, TREE VIBRATOR, FLAIR MOWER, 3 POINT HITCHES, SCARIFIER, TRACKS, HAND TOOL CONTROL, and FIFTH WHEEL. Full list on page 2 of the manual.

OEM spec. Exact part numbers. Stop chasing parts from worn stickers. Download the Factory Manual and get the correct part numbers every time.
