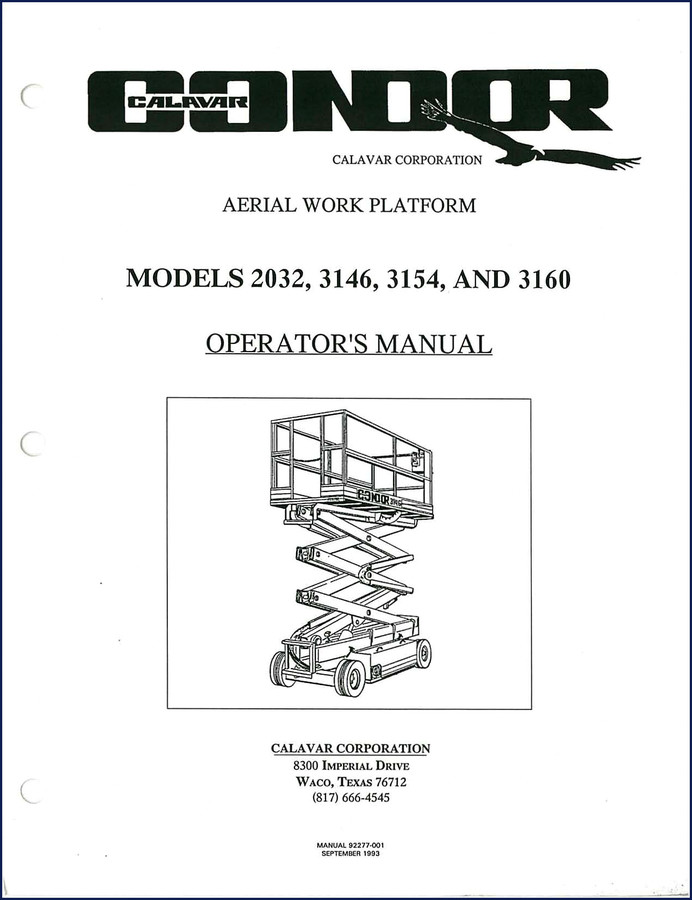

I’ve watched too many operators skip the paperwork and go straight to the joystick. That’s how platforms get overloaded, hydraulics get bypassed, and people get hurt. The Calavar 2032, 3146, 3154, 3160 1993 Operators Manual is the factory document that should live in the weatherproof box on every Condor platform. 148 pages of Calavar Corporation’s own procedure, printed September 1993. Not a third-party summary. Not a photocopy. This is the original OEM file.
Preparation, Inspection, and Maintenance – Section I
Section I starts with overall condition checks. Page 1 lists the models – 2032, 3146, 3154, and 3160 – and then walks you through lower control station inspection, platform inspection, hydraulic system checks, and battery/charger verification. Every hydraulic line fitting and decal location is called out. The manual explicitly says to check the hydraulic reservoir before daily operation. Skip that step and you’ll be replacing a pump. I’ve seen it.
Machine Operation: Rated Work Load and Controls
Section II is where most mistakes happen. The rated work load is given in the manual – not a sticker estimate, the actual design limit. Lower controls and platform controls are detailed with function descriptions. The manual states: “Do not operate until you have read and understood all information.” That includes the emergency lowering procedure in Section IV. If the platform loses power, you need to know those steps before you’re 40 feet up. Freewheel operation in Section VI is covered for non-powered movement; the manual includes the pins and disengagement sequence.
Emergency Lowering and Freewheel Operation
Section IV is two pages of pure safety. Emergency lowering from the lower control station – not guesswork. The manual shows the valve sequence. Section VI covers freewheel operation for towing or repositioning when the engine or electric motor is dead. You need to know how to disengage the drive system. That’s the kind of detail you don’t get from a used-machine photocopy or a forum post. The manual also includes the appendix: ANSI/SIA 92.6-1992 Manual of Responsibilities. That’s the standard that governs aerial work platform safety in North America. Your shop should have it. This manual gives it to you.
Moving and Transporting the Machine
Section V is what most home- garage operators forget. Loading and unloading, ramp method, forklift method. The manual gives angles and clearances. Transporting – tiedown points are called out. If you’ve ever seen a lift shift on a trailer, you know why these pages matter. One wrong strap placement and the machine becomes a hazard. The manual says to use only factory-approved lifting points. That’s not a suggestion.
Why OEM Beats Aftermarket – Source Validity
This is Calavar’s own document, manual 92277-001. No aftermarket rewrite. The OCR excerpt from page 3 says: “IT IS THE USER’S RESPONSIBILITY to consider the safety of all personnel.” That’s the language of a manufacturer who takes liability seriously. Aftermarket manuals often skip the legal notices and the ANSI appendix. This one includes everything. The 1993 publication year means it matches the original production era of these Condor models. If you’re working on a 3146 or a 3160, you need the specs that came with the machine.
FAQ
- Does this manual cover hydraulic system maintenance?
- Page 2. Section I-D. Inspection and maintenance of the hydraulic system, including reservoir level and filter check.
- What safety information is included in the appendix?
- The appendix contains the full ANSI/SIA A92.6-1992 Manual of Responsibilities. This document outlines owner/operator responsibilities under the American National Standard for aerial work platforms. It covers training requirements, pre-start inspections, hazard assessment, and decal maintenance. Calavar included this because it is legally required to be on the machine. Many operators ignore it until an incident happens. This appendix gives you the same text that OSHA and ANSI refer to. Keep it with the manual.
Look, I don’t write product pages for a living. I turn wrenches. But I know the difference between a manual that saves your ass and one that collects dust. This Calavar operators manual – 148 pages, original 1993 print – belongs in your shop library. Pair it with the Calavar Condor 2032 3146 3154 3160 Parts Manual for a full service setup. Also check the Calavar Condor 3160 2032 3146 3154 Operators Manual if you need a separate copy. For older serial numbers, the Calavar 47A, 37A Operators Manual – Factory Safety & Specs is also available. Understanding the freewheel operation is like learning a Manual Transmission – you need the engagement sequence. And when loading on a trailer, treat the driveline disengagement like a Manual Transmission shift – deliberate and correct. Download the Factory Manual now and have the actual Calavar specs on your workbench.
