Datsun A10 Electrical Schematic – Factory OEM Wiring and Troubleshooting Manual

You pull the wiring diagram from a third-party site and find three different wire colors for the same circuit. That is how weekend jobs turn into fires. The Datsun A10 Electrical Schematic is the original factory document – not a reprint, not a scan of a copy. It was printed for the dealer technicians who diagnosed these cars when they were new. Forty-nine pages of body electrical wiring, component locations, and diagnostic flow charts.

Every fuse, every fusible link, every switch contact – it is all drawn to the factory spec. If you are chasing a lighting fault, a dead gauge, or a wiper that only works in the rain, this manual gives you the test points and the expected readings. No second-guessing.

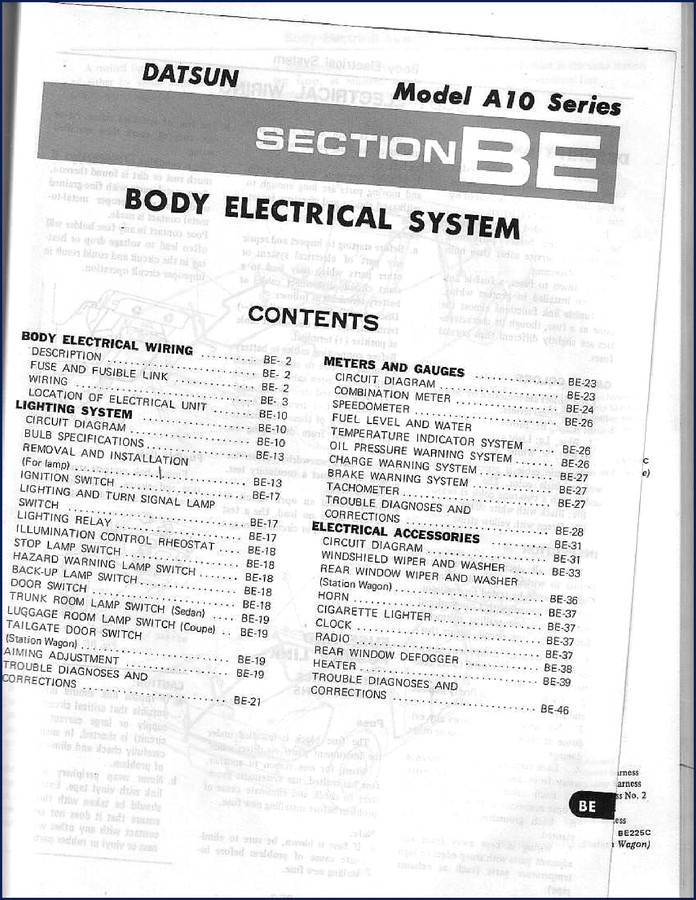

Body Electrical Wiring: Fuse, Fusible Link, and Unit Locations

Section BE starts with the description of the main harness and the fuse block layout. Page BE-2 covers the fusible link and fuse ratings. The wiring section on BE-3 shows the color codes and routing. Aftermarket diagrams skip the location of electrical units – this manual lists where each relay, switch, and module lives. You get the part numbers and the harness connectors. For a 40-year-old car, knowing where the ground point is saves an afternoon of probing.

Lighting System: Circuit Diagrams and Bulb Specifications

The lighting circuit diagram on page BE-10 is factory-original. Bulb specifications are listed – wattage, base type, and part number. Removal and installation for each lamp assembly is on BE-13. The ignition switch, lighting/turn signal switch, hazard switch, stop lamp switch, back-up lamp switch, door switches, trunk/luggage switches, and tailgate switch – all covered. There is even a dimmer adjustment procedure on BE-19. Troubleshooting for lighting starts on BE-21 with open-circuit and short-circuit checks. That section alone is worth the price if you have a flickering headlight.

Meters and Gauges: Fuel, Water, Oil, Charge, Brake Warning Systems

The combination meter circuit diagram on BE-23 shows every connection. Speedometer calibration, fuel level and water temperature indicator system on BE-26, oil pressure warning system, charge warning, brake warning, tachometer. Each system has its own trouble diagnoses on BE-27. The fuel sender resistance values are given – you can bench-test your sender before reinstalling it. The charge warning system includes the alternator sense circuit. That level of detail does not come from a generic repair book.

Electrical Accessories: Wiper, Washer, Horn, Heater, Defogger

Circuit diagram on BE-28 covers the accessory power distribution. Windshield wiper and washer removal, linkage adjustments, motor testing – BE-31. Station wagon gets rear wiper coverage on BE-33. Horn circuit, cigarette lighter, clock, radio wiring, rear window defogger, and heater blower. Each accessory has its own troubleshooting procedure on BE-39. If your horn blows when you hit the brake, this is where you find the shorted wire.

Trouble Diagnoses and Corrections – Why This Manual Stops the Guesswork

Three dedicated trouble diagnoses sections: lighting (BE-21), meters (BE-27), and accessories (BE-39). Each one walks through symptoms, possible causes, and test steps. These are the same checklists the factory trained techs used. You get voltage drop tests, continuity checks, and component resistance specs. No aftermarket wiring schematic gives you that. You pay for a paper diagram and get a picture of wires. You pay for this manual and get a diagnostic flowchart.
