Dynapac CA150D Parts Catalog – Factory OEM Spare Parts Breakdown

Running a shop means you’ve seen parts orders come back wrong because somebody guessed the serial number range. That costs billable hours and machine downtime. The Dynapac CA150D Parts Catalog (204 pages) kills that guessing cold. It’s the same binder contents Dynapac shipped to dealers – not a third-party rehash with misprinted digits.

Ordering Spare Parts the Right Way

Page 4 spells out exactly what to tell your parts counter: machine type, roller serial number, quantity, part number, denomination, and dimensions if ordering by length. Miss any one of those six and you’re betting the wrong bearing shows up. I’ve watched guys skip the serial number step – then they get a part that fits a CA150D from 2003, not their 2006 build. That’s a wasted Saturday. This catalog makes you hand over the right info every time.

204 Pages of Exploded Views and Part Numbers

You get the full breakdown – frame, drum, hydraulic system, engine mounting, electrical harness. Every component is keyed to a Dynapac factory part number. No vague callouts like “bearing, similar to xxx.” If you’re rebuilding a CA150D vibration motor or replacing a drum seal, you’ll find the exact OEM number. The Dynapac CA150D Spare Parts Catalogue covers the same layout for cross-referencing when your supplier is out of stock on one number.

Related manuals – if you need deeper on the hydraulic side, grab the Dynapac CA150D Parts Catalog from the same series, or the Dynapac PL2000LS Parts Catalog (258 Pages) – OEM Factory Spec for the paver line. They all follow the same part-numbering logic.

Engine Specifics: Cummins 4BT 3.3 Coverage

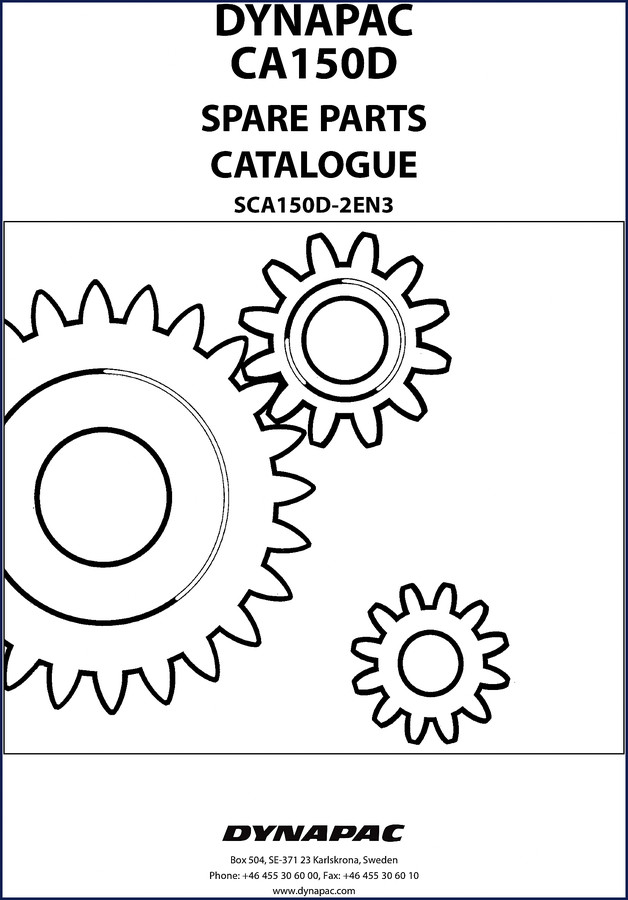

That little 4BT 3.3 diesel is the heart of the CA150D. The catalog includes every engine-related part – fuel injection pump, cylinder head gasket, oil cooler, turbo lines. You’ll even see the part number for the crank pulley bolt if you’re doing a front seal job. Note that the catalog applies to serial numbers from 73220400 and up, with engines dated 2004–2006 depending on the revision level. Cross-check your machine’s build date on page 3 against the three catalogue issues (SCA150D-2EN1, -2EN2, -2EN3).

How to Identify Your Roller Serial Number Range

Page 3 lists the valid serial number cutoffs for each catalogue revision. If you own a CA150D with serial below 73220400, you’ll need to verify your machine’s build date against the Dynapac records. The manufacturer – Dynapac – still supports these rollers, but you must supply the serial when ordering. Don’t rely on memory; paint stamps flake off. Dig the plate off the frame rail before you open this PDF. For a broader look at heavy equipment documentation, the Automotive Industry Overview covers how OEM specs differ from aftermarket copies.

Where OEM Factory Documentation Beats Aftermarket

Aftermarket parts catalogs for rollers often use generic diagrams and skip machine-specific callouts like “Dynapac 951-xxxx” seals. This manual is printed from Dynapac’s own Spare Parts Catalogue file (DYNAPAC_CA150D_Parts_Catalog_en-26114002471.pdf). Every page matches what the dealer uses. If you’re a fleet mechanic maintaining multiple CA150D units, you save time because you don’t have to phone the dealer for a part number – you look it up, call the supplier with the OEM number, and the part arrives right. No returns, no restocking fees.

FAQ

Does this catalog cover the entire CA150D roller?

Yes – frame, drum, hydraulics, engine (Cummins 4BT 3.3), electrical, and operator cab. All 204 pages are full exploded diagrams with part numbers.

What year models does it fit?

It covers serial numbers starting from 73220400 and includes three catalogue revisions from 2004 through 2006. Check page 3 for your specific issue.

Can I use this to rebuild a vibration motor?

Absolutely. The vibration system section shows every bearing, seal, and eccentric weight with factory part numbers. You’ll also find the torque specs for the housing bolts in the notes section.

Is this the same PDF the dealer uses?

Yes, it’s an OEM factory scan of the official Spare Parts Catalogue. No modification, no reprint. What you see is what the parts counter pulls up.

You don’t have time to chase wrong part numbers. When the roller is down and the crew is waiting, reach for this catalog. Download the Factory Manual and get the right Dynapac parts on the first order.
