Dynapac CA302PD Parts Catalog

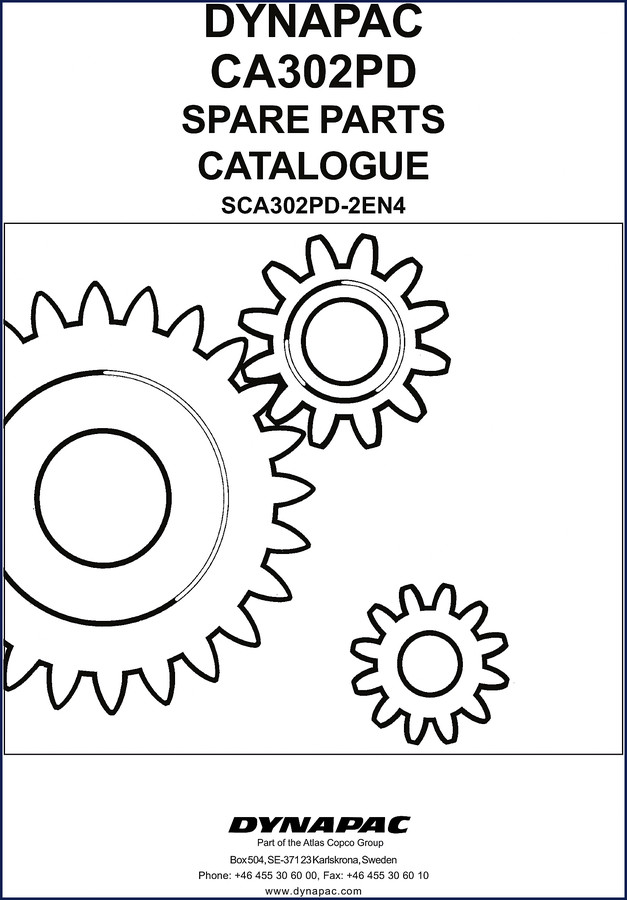

If you’re trying to rebuild a Dynapac CA302PD roller without the factory parts catalog, you’re wasting time and money. I’ve seen guys order parts off memory or aftermarket websites and end up with the wrong bearing, the wrong filter, or a seal that doesn’t match the serial number. That’s downtime you can’t bill for. This is the real thing – the Parts Catalog Dynapac itself issued to dealers. All 363 pages of exploded views, part numbers, and ordering specs. No fluff, no reprints. Factory data only.

Ordering Spare Parts: The Factory Procedure

Page 4 of this catalog spells out exactly how Dynapac wants you to order. You need six pieces of information: type of machine, roller serial number, quantity, part number, part denomination, and dimensions if ordering something sold by length. Miss any one and you risk getting the wrong part. That’s not a theory – that’s what the manual says. When you call your dealer with the part number from this book, you get the right seal, the right hose, the right filter. I can’t count how many times I’ve seen a shop try to order using just a description and end up with a part that doesn’t fit. That’s a waste of everybody’s time.

Engine and Serial Number Identification

Page 3 shows the diesel engine for this roller: Deutz BF4M2012C. It also lists the serial number ranges covered. The catalog issue dates run from 2003 up to 2008, and valid serial numbers start at *68510319*-. If your machine falls outside that range, you might need a different catalog edition. Always match the serial number before ordering. The engine section alone is worth the price of the book – you get the breakdown of every component on that Deutz, from the injection pump to the cooling fan.

Why a Factory Parts Catalog Beats Third-Party Lists

Third-party parts lookup sites scrape data from who-knows-where. They don’t have the revision history that Dynapac built into this official catalog. The CA302PD went through four catalog issues (SCA302PD-2EN1 through -2EN4). Each one updated part numbers or superseded old ones. A generic PDF might show an obsolete part number, and you order it, and it’s either discontinued or wrong. With this factory catalog, you get the exact part number that Dynapac intended for your serial number. I’ve torqued enough head bolts to know that shortcuts cost money. Don’t shortcut your parts sourcing.

Does This Catalog Cover Hydraulic and Electrical Components?

Yes, the entire machine is broken down by group. The Table of Contents would list groups like Frame, Vibration System, Steering, Brakes, and Electrical. Each group has an exploded diagram and a parts list with quantities. If you need a hydraulic hose, you find the group, find the diagram, and read the part number. No guesswork. And because it’s a factory catalog, the callout numbers match the actual production drawings. That means you can order seals, bearings, and even the rubber mounts without cross-referencing.

Using the Parts Catalog on the Job: Real-World Tips

Keep this catalog on your tablet or in the shop. When a customer brings in a CA302PD with a vibration issue, the first thing you do is check the serial number. Cross it with page 3 to confirm the catalog issue matches. Then go to the Vibration System group – you’ll see the eccentric weight assembly, bearings, and seals. Order the exact part numbers listed. Don’t call the dealer and say “I need a seal for the vibrator.” Give them the number from page whatever. That’s the difference between a four-hour job and a two-job-day waste. The manufacturer Dynapac built these rollers to spec, and the parts catalog is the key to keeping them on the job. For background on heavy equipment standards, see Automotive Industry Overview on Wikipedia.

Related manuals for other machines: Dynapac CA302PD Parts Catalog – OEM Factory Specs, 363 Pages Dynapac PL2000LS Parts Catalog (258 Pages) – OEM Factory Spec Dynapac PL2000LS Parts Catalog – Factory OEM Specs for Cold Planer

Can I use this catalog for other Dynapac models?

No. This catalog is specific to the CA302PD vibratory roller only. Other models have different part numbers.

What engine does the CA302PD use?

Deutz BF4M2012C – listed on page 3.

How do I know if my machine is within the serial number range?

Check the serial number plate on your roller. If it starts with *68510319* or later, this catalog covers it. The catalog issues run from 2003 to 2008 – verify your machine’s build date against the table on page 3. If your serial number is earlier you need the previous catalog edition. That old edition sometimes shows superseded parts that are no longer available, so consult your dealer.

Does this parts catalog include torque specs or repair instructions?

No. This is strictly a parts catalog with exploded diagrams and part numbers. It does not contain assembly torque values or step-by-step disassembly. You need the service manual for that. But if you order the right parts using this catalog, you won’t be stuck waiting for a mis-shipped item.

If your shop works on heavy compaction equipment, having the factory-approved parts breakdown for the CA302PD is vital. You save the time of chasing wrong parts and the cost of returns. Get the data that the dealer uses. Download the Factory Manual now.
