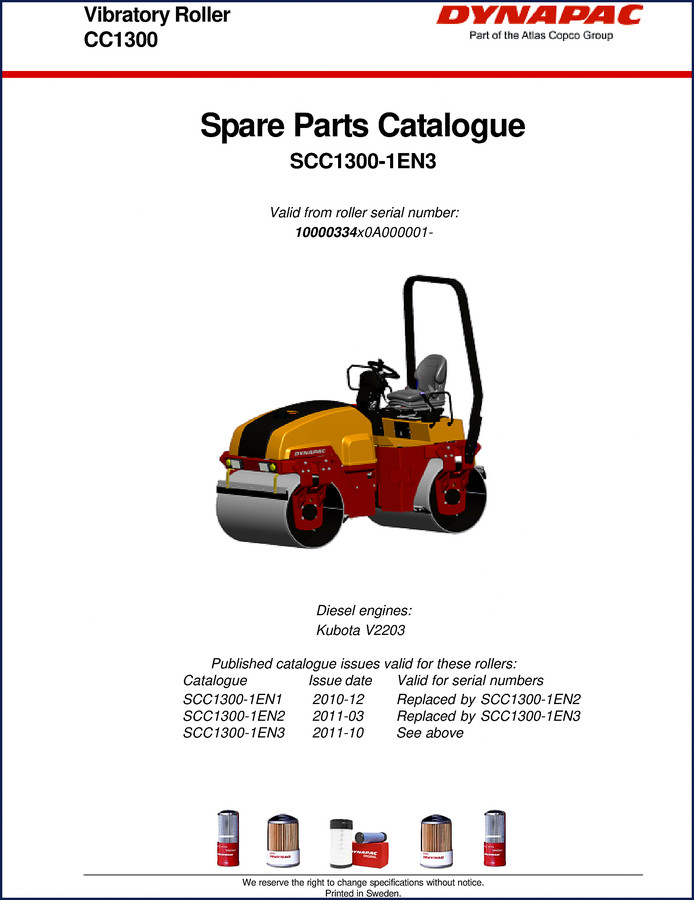

Dynapac CC1300 2011 Parts Catalog – Factory Specs for Your Roller

Ordering the wrong part for a Dynapac CC1300 vibratory roller is a waste of money and downtime. That’s why you need the factory issued parts catalog – not a scanned copy, not a third-party compilation. This is the 2011 edition, 220 pages, covering serial number range 10000334x0A000001 and up. It comes straight from the manufacturer’s press, not clipped from a PDF aggregator. Dynapac CC1300 2011 Parts Catalog gives you the exact part numbers, quantities, and exploded diagrams to order what fits the first time.

Service Kits and Repair Kits: What’s Inside

This catalog breaks down every service interval with specific kit part numbers. You get the 50‑hour kit (4812156265), the 250/750‑hour kit (4812156288), the 500‑hour kit (4812156266), and the 1000‑hour kit (4812156268). Each is listed with the exact hardware you need – no guessing which o‑ring or filter works. For repairs, you get eccentric shaft kit 4700938909, drum rotation kit 4700938893, scraper kit (12 mm) 4700938915, shock absorber kit 4700938887, and steering hitch kit 4700938575. Need to order one? You need the roller serial number – page 2 tells you exactly what info the dealer requires.

8 Major Sections in This Parts Catalog

The book is laid out like a real shop reference: Frame (rear and front, steering hitch, scrapers, sprinkler system, towing device), Drum, Engine Room (Kubota V2203 diesel module, exhaust, fan, air filter, expansion tank, water cooler, engine hood, casing, fuel system, hoses), Hydraulic System (propulsion, vibration, steering, brake, flow divider), Electrical Equipment (horn, battery, cable harness, working lights, rotating beacon, driving lights, direction indicators, backup alarm), Driver’s Platform (platform, instrument panel, steering wheel, control module, forward‑reverse control, throttle, seat, ROPS, canopy), Decals, and Optional Equipment (fire extinguisher, tool equipment, SMV sign, brake release). That’s every system on the machine covered with factory part numbers.

Does This Parts Catalog Include Torque Specifications?

No – this is a parts catalog, not a service manual. Torque values live in the workshop manual. What this PDF does give you is the exact Dynapac part number for every seal, bearing, bolt, and hose in the hydraulic system. For example, the steering cylinder is 4700374603. If you need the junction block for the propulsion system, it’s 4812110281. You can cross‑reference those numbers against what’s in your hand and order the correct item the first time.

Get the Right Part Number the First Time

Page 2 of the catalog spells out the ordering procedure in six languages: machine type, roller serial number, quantity, part number, denomination, and dimensions for length items. Ignoring the serial number step is the #1 reason a dealer ships the wrong part. This catalog is valid for rollers starting at serial number 10000334x0A000001. If yours is outside that range, check the Dynapac CC1300 2011 Parts Catalog – 220 Pages OEM Parts Data for the correct revision. The OEM catalog always beats aftermarket part listings because the drawings match the exact production run.

Dynapac CC1300 2011 Parts Catalog: OEM Authenticity

Third‑party parts books often mix up revisions or leave out option variants like the spring‑loaded scraper or the vibration shut‑off front drum option. This is the original Swedish print from Dynapac (part of the Atlas Copco Group). The file carries the SCC1300‑1EN3 issue from October 2011 – every page matches what the dealer looks up. If you’re working on a roller with the Kubota V2203 diesel engine, this catalog is your one source. For other Dynapac models, see the Dynapac PL2000LS Parts Catalog (258 Pages) – OEM Factory Spec. For newer revisions of this machine, check Dynapac CC1300 2015 Parts Catalog.

You can read more about heavy equipment documentation standards at Automotive Industry Overview. The official Dynapac site also supports the part numbering system used here.

That is the whole reality of ordering parts for a compaction roller – you need the factory book. Skip the aftermarket PDFs that miss option codes. This 220‑page PDF is fully bookmarked with every section (Service Kits, Repair Kits, Frame, Drum, Engine Room, Hydraulic System, Electrical Equipment, Driver’s Platform, Decals, Optional Equipment) and includes the numerical index.

Download the Factory Manual now and eliminate the guesswork from your next parts order.

What serial number range does this catalog cover?

From 10000334x0A000001 and up. Page 1 confirms this as the SCC1300-1EN3 issue.

Can I use this for a CC1300 with a different engine?

This catalog only covers the Kubota V2203 diesel – 34 kW. If your roller has a different engine, the part numbers for the engine module, hoses, and cooling system will not match. You would need the specific catalog for your machine serial number.

Does this include exploded diagrams for the drum assembly?

Yes.

How many pages and what format?

The catalog is 220 pages in PDF format. The file is fully searchable and includes bookmarks that match the table of contents. You can jump directly to the Drum section, the Hydraulic System, or any option group. The page numbers correspond exactly to the printed OEM binder, so your calls with the dealer will reference real Dynapac page numbers – no misalignment.
