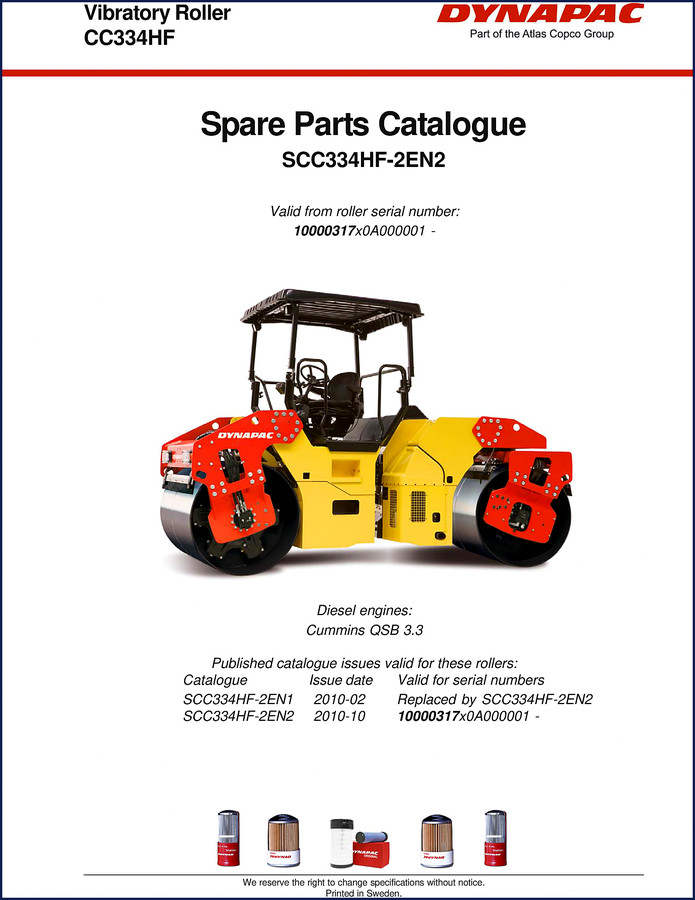

Dynapac CC334HF 2010 Parts Catalog – Stop Ordering Wrong Parts
If you’ve ever ordered a hydraulic pump for a Dynapac CC334HF 2010 Parts Catalog and got the wrong one because you guessed at the part number, you understand the pain. A job that should take an hour turns into a week of returns and reordering. That’s where a factory Parts Catalog – not a repackaged spreadsheet – saves your backside. This is the genuine OEM document that Dynapac dealers use. 457 pages of exploded views, part numbers, and service intervals. No third-party interpretation.
7 Systems Covered – From Frame to Electrical
The table of contents splits the machine into major groups: Frame (front and rear), Drum, Engine, Hydraulic system, Electrical equipment, and the Sprinkler system. Each group drills down to modules and individual parts. For example, under Drum you’ll find the split drum module, propulsion motor module with drive unit assembly (part 4700392523 Gear box), and vibration motor module with vibrating unit. The hydraulic section is broken into front drum hoses, rear drum standard/offset, steering hydraulic, and the flow divider module. This level of detail means you can isolate exactly which hose assembly or valve you need without dismantling half the machine.
Ordering Spare Parts – The Page 2 Procedure
Turn to page 2 and you’ll see the ordering instructions printed in six languages. They list the six pieces of information you must give: machine type, roller serial number, quantity, part number, part denomination, and dimensions if ordering by length. That last one catches people who order meter-long hose sections without specifying length. This manual came from Dynapac’s own printing – it’s the same document an Atlas Copco dealer uses. The serial number range covered is 10000317x0A000001 and up. If your roller falls in that range, this is your catalog. Check your serial plate before ordering.
Service Kits and Repair Kits – What They Include
The catalog lists four service kits: 50h (Cummins QSB 3.3), 250/750 h, 500h, and 1000h. Each has its own Dynapac part number – 4700950174, 4700939076, 4700950175, 4700950176. For repair kits, you get eccentric shaft kit (4700945722), scraper kit (4700945908), and shock absorber kit for the drum (4700945718). Steering hitch kits are also listed. If you’re rebuilding a drum or replacing shock absorbers, these kits save you from sourcing individual bolts and seals. But you need the exact part numbers to order – that’s what the catalog gives you. No guesswork.
Why OEM Documentation Beats Aftermarket Copycats
I’ve seen aftermarket parts lists that swap a bolt grade or miss a washer. On a roller that vibrates at high frequency, a wrong fastener can fail and send the drum through a fence. This catalog is a direct scan of the Dynapac factory printing – same part numbers, same exploded view layout, same notes about class codes (A = 3 or more units/year, B = 2 or more units/year). The text pages are structured with remarks at the bottom, and parts marked with a dot indicate they’re included in the assembled unit above. That dot is easy to miss on a photocopy. This is the real thing. For related equipment, see the Dynapac CC334HF 2010 Parts Catalog or the Dynapac CC334HF Spare Parts Catalogue for other years. Also check the Dynapac PL2000LS Parts Catalog (258 Pages) – OEM Factory Spec if you run a larger paver.
Who Needs This Catalog
If you own a CC334HF vibratory roller and you do your own maintenance, you need this. If you manage a fleet and your mechanic keeps ordering the wrong scraper blade, you need this. If you’re a parts counter guy trying to cross-reference a Dynapac number with a generic hose, this catalog gives you the OEM part number so you can match it correctly. The construction industry runs on serial numbers and part numbers. One digit off and you’re waiting another week. This catalog eliminates that.
The catalog also covers the electrical system – battery disconnector, ECU module, wiring for sensors. That’s useful when a sensor fails and you need the exact plug connector. The hydraulic system section includes the flow divider assembly and the steering slideable seat hoses. All part numbers are listed with illustrations that show where each component sits on the machine. No guessing which hose goes to which port.
That’s the difference between factory documentation and a photocopied list. For more on the automotive and equipment parts industry, see this Automotive Industry Overview and also the Automotive Industry Overview for context on supply chains.
Frequently Asked Questions
- Does this catalog include torque specs?
- No. This is a parts catalog, not a service repair manual. It lists part numbers and exploded views. You need the separate service manual for torque values and procedures.
- Can I use this for a CC324HF or CC424HF?
- Some sections overlap – the scraper kit 4700945908 covers CC324/334/424HF. But the frame, drum, and engine sections are specific to CC334HF. Check your serial number.
- How do I know if my roller serial number is covered?
- The catalog is valid from serial number 10000317x0A000001 and up. Find the plate on your machine near the engine compartment or frame rail. If it starts with 10000317x, you’re good.
- Is this a printed book or a PDF download?
- You receive a digital PDF of the original factory catalog. It’s 457 pages, bookmarked, and searchable. You can print specific pages for the shop.
Stop chasing part numbers across three different websites. Get the factory source. Download the Factory Manual for your Dynapac CC334HF and keep your roller running. One click, one file, no missing digits.
