Dynapac CP274 2010 Operators Manual – Factory Specs for the Rubber Wheel Roller

I’ve been turning wrenches for 28 years, and I can tell you the difference between a factory manual and some aftermarket PDF that was scanned by a guy in his basement. The Dynapac CP274 2010 Operators Manual is the real deal – 123 pages of Dynapac’s own documentation, printed in Sweden, translated from the original Swedish instructions. No hand-me-downs, no missing pages.

This isn’t a service manual. It’s the operating and maintenance guide for the rubber wheel roller with the Cummins QSB 4.5 diesel engine. If you’re running a CP274 on a job site in San Antonio heat or a freeze zone up north, you need the factory data on fluids, torque, and safety. Skip the generic stuff. This manual tells you exactly what the machine needs.

Safety Instructions for Operating the CP274

First thing I look at in any manual is the safety section. Page 1 starts with warning symbols and intended use. Page 5 hits you with general safety instructions. Then page 7 covers operating on slopes. You ever see a roller tip over because the operator didn’t know the slope limit? I have. The manual spells out driving near edges and slope angles. Don’t skip this – it’s not just liability CYA. Dynapac put real engineering into those limits.

Why Choose an OEM Operators Manual Over a Generic Reprint?

Aftermarket manuals often guess at specs or leave out critical notes like “high pressure cleaning restrictions” (page 11) or “freeze risk” (page 11). The OEM manual from Dynapac includes those special instructions because they know their machine. I’ve had to re-torque head bolts on a Cummins because a guy used a third-party manual that had the wrong ft-lb. Waste of time and money. Factory spec data is the only way to go.

7 Critical Sections Every Operator Should Read

Don’t just skim. Read these seven sections:

• Introduction (page 1): Machine overview and intended use.
• Safety – General instructions (page 5): Rules for operation.
• Safety – when operating (page 7): Slopes and edges.
• Special instructions (page 11): Fluids, temps, fire fighting.
• Technical specifications (page 15): Vibrations, noise, electrical.
• Dimensions and weights (page 17): Clearance and capacity.
• Tightening torque (page 20): Critical bolt specs.

Torque Specs and Fluid Capacities – Page 20 Data

Page 20 lists the tightening torque for critical fasteners. Dynapac gives it in both metric (Nm) and imperial (ft-lb). I’ve seen guys torque lug nuts on a roller by feel – bad idea. The manual also covers standard lubricants and recommended oils on page 11. Higher ambient temps above 104°F? Lower temps with freeze risk? It’s all there. You’ll also find working capacity details on page 19.

Understand the ROPS and Battery Handling

Roll Over Protective Structure (ROPS) is mandatory on any site with rollover risk. Page 12 covers ROPS-approved cab requirements. Battery handling is also there – including jump starting procedure for the 24V system. I’ve seen guys hook up cables backwards on a 24V system and fry the ECU. Follow the manual. It’s three pages of safe procedure.

Real-World Use: Who Needs This Manual?

If you own a CP274 or operate one on a construction site, you need this. Home garage enthusiasts might not need it – this is a heavy machine, not a lawn tractor. But if you’re a DIY mechanic maintaining a municipal roller, or a shop owner training a junior tech, the OEM manual is your baseline. Pair it with related factory docs like the Dynapac CP224 CP274 Electrical System for wiring or the Dynapac CP274 Parts Catalog for part numbers. Also check the Dynapac SD2550CS SD2550C Operators Manual – Factory Specs & Safety for other rollers.

For general knowledge on how transmissions work in rollers vs road vehicles, read up on Manual Transmission basics. But the CP274 uses a hydrostatic drive, not a traditional Manual Transmission.

Does this manual include wiring diagrams?

No – this is an operators manual, not a service manual. It covers operation, maintenance, and safety. For electrical system troubleshooting, get the electrical manual.

What serial numbers does this manual cover?

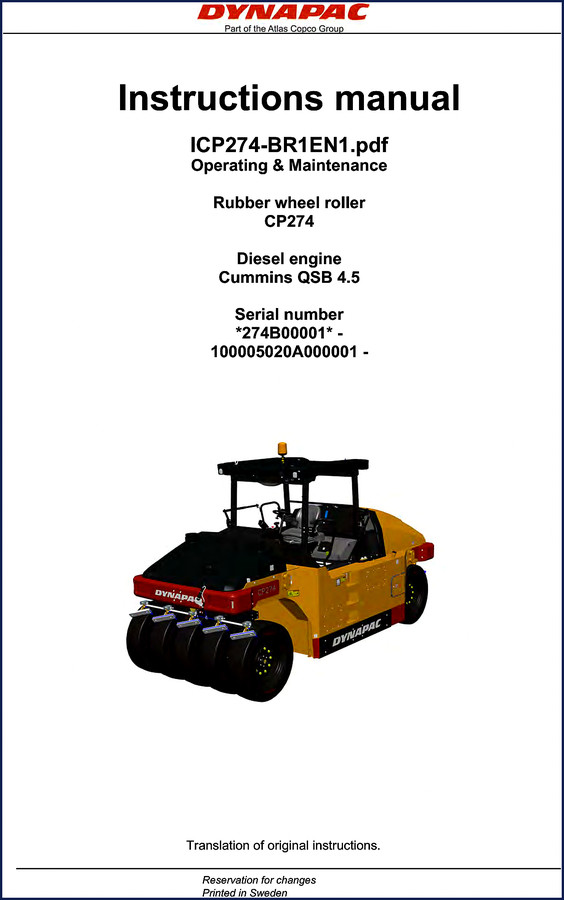

It covers serial numbers 274B00001 through 100005020A000001 for the CP274 rubber wheel roller with Cummins QSB 4.5 diesel engine. The manual includes operating and maintenance instructions, safety warnings, technical specs, and special instructions for high temperature and freezing conditions. It is 123 pages published in 2010. Dynapac printed it in Sweden and it’s a translation of the original instructions. You get the exact same data the dealer uses.

If you run a CP274, stop messing around with photocopied hand-me-downs. Download the Factory Manual from AutoRepairManuals and keep it in the cab. Your machine – and your crew – will thank you.
