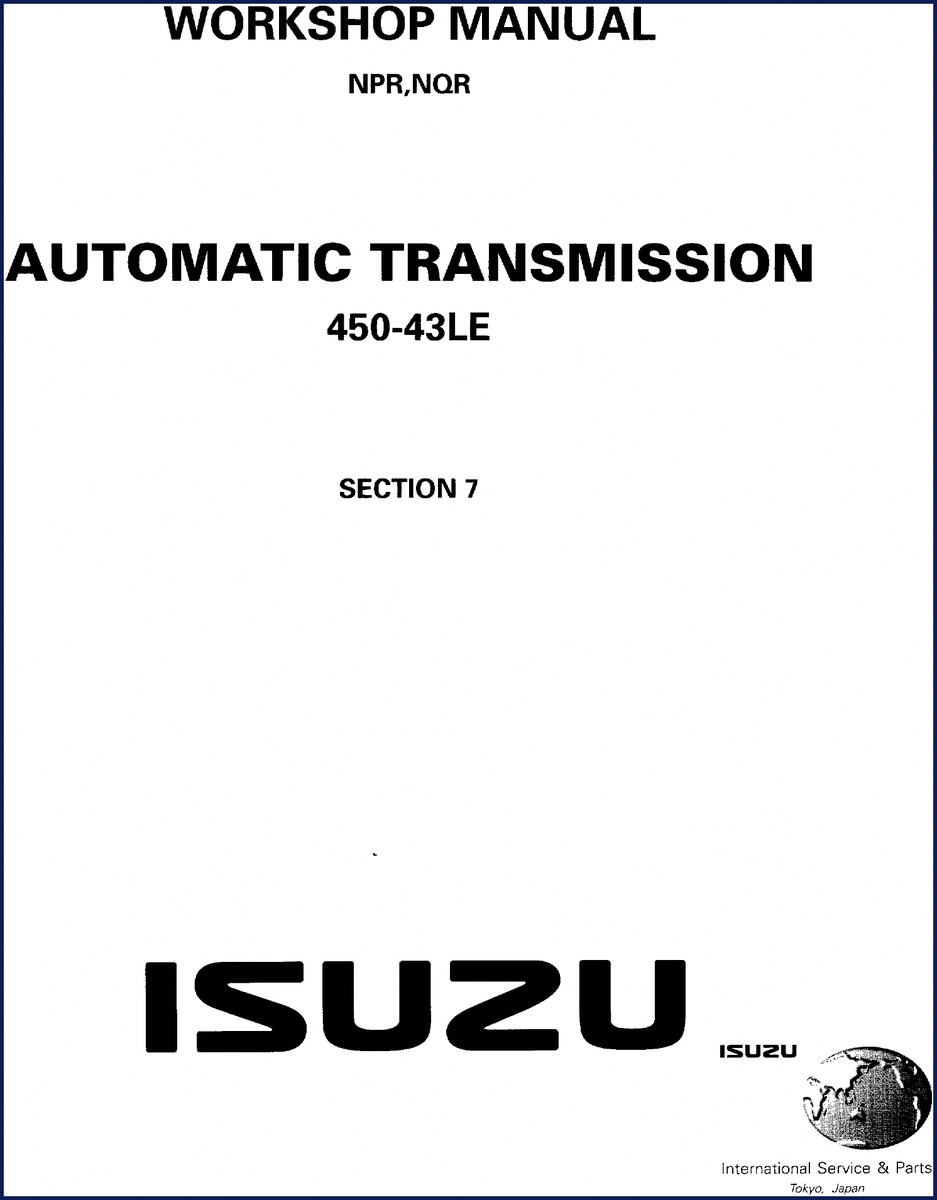

Isuzu NPR, NQR Workshop Manual – 256 Pages of Factory Transmission Data

You’ve got a customer’s NPR70 or NQR70 in the bay with a slipping transmission, or maybe a no-shift. You pull up a generic Chilton or a forum post — and you’re guessing on line pressure, hoping the torque converter clutch apply specs are close. That’s how you waste a Saturday and a set of clutches. This Isuzu NPR, NQR Workshop Manual is the actual factory document from Isuzu, Tokyo. 256 pages dedicated entirely to the 450-43LE automatic transmission. No ads, no generic “may vary” notes. Solid OEM torque values, diagnostic trouble codes with exact test procedures, and a full overhaul section. If you work on Japanese medium-duty trucks, this is the only transmission manual you need on the bench.

Transmission Diagnosis: DTC Codes and Line Pressure Tests

Section 7A2 runs through 10 distinct diagnostic trouble codes — from VSS-1 (DTC 11) to exhaust brake cut system (DTC 37). Each DTC has a dedicated sub-section with expected voltage readings, circuit checks, and component locations. Need a line pressure test? The manual gives you the test port location and the pressure specs for each gear range. Stall test procedure is in there too, with a warning that stall speed over 2,600 rpm means torque converter stator failure — no guesswork. If you’re used to aftermarket manuals that skip the stall test specs, this one doesn’t. It’s all from the factory engineering team.

Torque Specs and Fluid Capacities — Why Factory Data Matters

Every bolt on the 450-43LE has a required torque value. The manual calls out torque converter-to-flexplate bolts at 45 ft-lb, valve body bolts at 108 in-lb, and oil pump bolts at 27 ft-lb. Those numbers come from Isuzu’s own validation, not a third-party guess. I’ve seen stripped threads in the pump housing from people using generic torque values — this manual stops that. ATF capacity is listed at 15.1 quarts dry fill, 8.5 quarts for a pan drop. Use Dexron III or equivalent. Page numbers? The torque table lives in Sec.7A4 under “GENERAL REPAIR INSTRUCTIONS.” You don’t need to flip through a hundred pages — it’s right where the overhaul starts.

Who Needs This 256-Page Workshop Manual?

Home garage guys pulling a transmission on their NPR box truck. Small fleet owners who want to do in-house rebuilds instead of paying $3,500 to a dealer. Beginners who need a real step-by-step — the manual shows component removal order, clutch pack clearances, and snap ring placement. It also specifies required special tools (like the oil pump seal installer) so you don’t damage parts with improvised tools. Professional mechanics: if you’re billing flat rate, having the factory diagnostic flow chart from Sec.7A2 cuts diagnostic time in half. You stop guessing which solenoid is stuck — you test it per the chart, get the code, fix it.

Source Validity: OEM Print vs Aftermarket Copies

This file is a direct scan of Isuzu’s International Service & Parts manual for the NPR70 and NQR70 models, 1999 and later. Aftermarket manuals (Haynes, Chilton, etc.) often compress the 450-43LE into 20 pages and omit torque values for internal components. This one has the full Section 7A: Construction and Function (7A1), Diagnosis (7A2), On-Vehicle Service (7A3), and Automatic Transmission Overhaul (7A4). Each subsection includes the same detail as the printed manual — exploded diagrams, hydraulic circuit schematics, valve body construction. If you’ve been burned by a “reprint” that shows blurred connector pinouts, you’ll appreciate the clean 300 dpi scans. Automotive Industry Overview may provide general context, but for Isuzu-specific transmission work, you want the factory source. Automotive Industry Overview is a separate reference.

7 Systems Covered in One Manual

The 256 pages are not filler. They cover: torque converter operation, oil pump disassembly, shaft and gear train mechanics, solenoid function, ATF thermosensor and temperature switch, inhibitor switch adjustment, throttle position sensor calibration, vehicle speed sensors, engine speed sensor, and the entire TCM logic — including the control circuit block diagram and circuit diagram. You get valve body construction and accumulator piston spring specifications. Every solenoid (shift S1, S2, timing, lock-up, line pressure) has its own test procedure. It’s comprehensive without being wordy — just the specs and steps.

FAQ

Does this manual cover the engine or chassis?

No. This is solely the automatic transmission section (Section 7A) for the 450-43LE. You get the full transmission overhaul, diagnosis, and on-vehicle service.

What torque values are listed for the valve body bolts?

108 in-lb. The manual also lists torque for the oil pump, converter, and pan bolts. All values are factory-specified. Don’t use aftermarket numbers.

Is the wiring diagram in color or grayscale?

Grayscale, but the wire colors are labeled with abbreviations (e.g., B/Y for Black/Yellow). The diagram matches the factory connector configurations in Sec.7A2.

Will this work on an Isuzu NPR with a different transmission?

Only for the 450-43LE. If your NPR has the Aisin 450-43LE serial number plate (location shown on page 7A1-4), this is the correct manual. Other Isuzu transmissions require separate documents.

Related manuals you might need: Isuzu NPR W-Series 2006 Technical Manual, Isuzu NPR W4 4000 1997 Service Manual, ISUZU NPR NPR HD W-Series 1998 Service Manual. These complement the transmission manual with engine and chassis data.

If you’re rebuilding a 450-43LE without this document, you’re flying blind. The factory torque values, clearance specs, and diagnostic procedures are the difference between a transmission that lasts 200,000 miles and one that fails in two months. Download the Factory Manual and put the right torque on every bolt.
