Jeep CJ-3B, CJ-5, CJ-5A, CJ-6, CJ-6A 1977 Service Manual

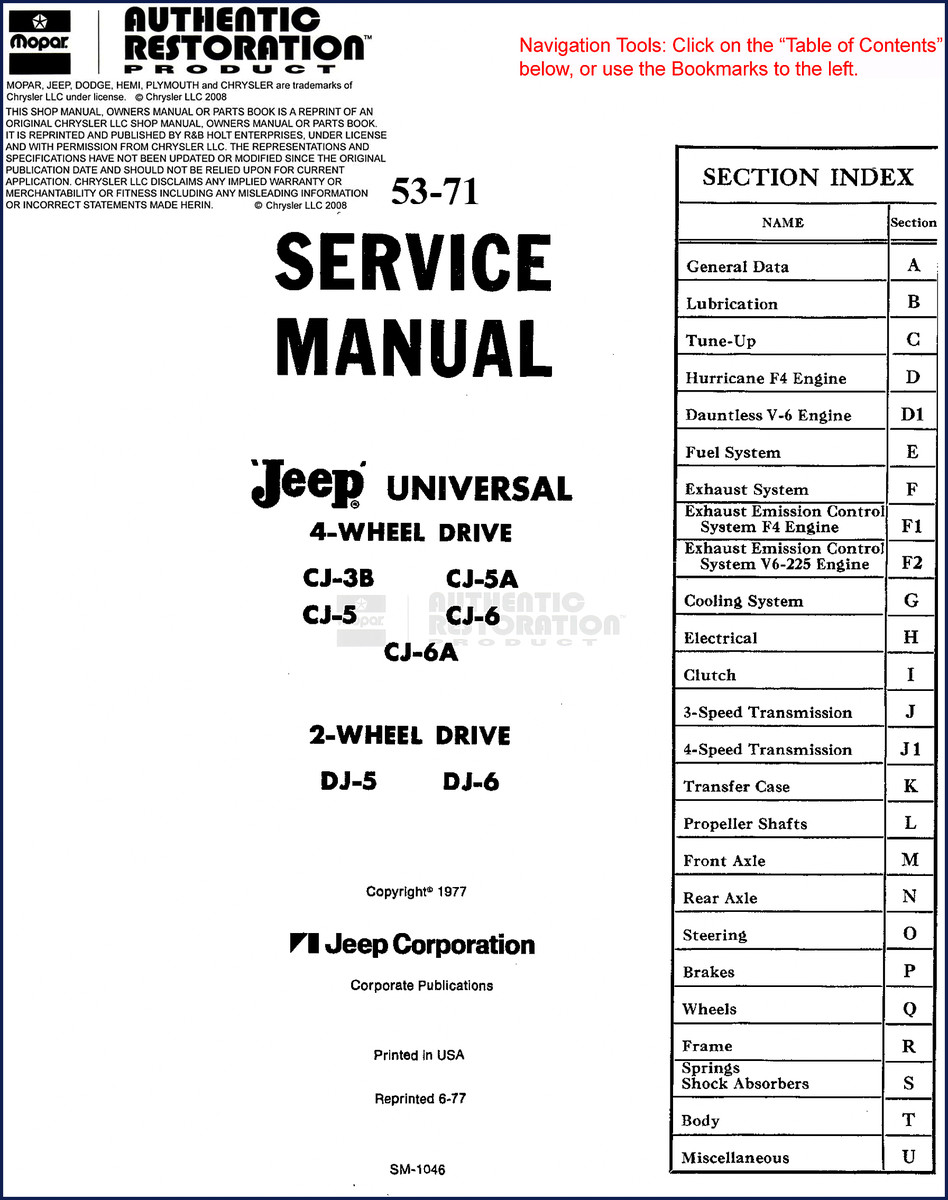

Got a 1977 Jeep CJ-3B, CJ-5, CJ-5A, CJ-6, or CJ-6A sitting on your lift? I’ve been wrenching on these things since before they were classics, and I can tell you one thing: the aftermarket “universal” manuals are garbage for these Jeeps. You need the real factory Service Manual—the one that Chrysler (via Jeep Corporation) printed in 1977. This 376-page reprint is the exact same book that dealers used. Page 1 starts with the table of contents and a reminder that Mopar authentic restoration products are under license. No fluff. No guesswork. Just OEM torque specs and procedures that keep your rebuild from turning into a scrap pile.

Hurricane F4 Engine and Dauntless V-6: Two Engines, One Manual

This manual covers both the Hurricane F4 engine (Section D) and the Dauntless V-6 engine (Section D1). You get full disassembly, reassembly, and torque sequences for both. Need the head bolt torque for the F4? It’s in the Engine section, not hidden in some appendix. The manual also includes the Exhaust Emission Control System for both engines—Sections F1 and F2, respectively. That’s 1977 emissions tech, but the data is still valid for restoration or off-road builds where smog gear matters. If you’re swapping in a later engine, the wiring and vacuum routing diagrams in the Electrical section (Section H) will save you from chasing phantom shorts.

What’s Inside: 376 Pages of Factory Procedure

The table of contents reads like a checklist for a full restoration. General Data (Section A) gives you vehicle identification numbers, serial locations, and general specs. Lubrication & Periodic Services (Section B) tells you what grease to use and where. Tune-Up (Section C) covers ignition timing, carburetor adjustments, and vacuum lines. Then the hard stuff: Fuel System (Section E), Cooling System (Section G), Electrical System (Section H). The Transmission sections cover the Three-Speed (J) and Four-Speed (J1), plus the Transfer Case (K). You also get Propeller Shafts & Universal Joints (L), Front Axle (M), Rear Axle (N), Steering (O), Brakes (P), and even Body (T) and Miscellaneous (U). That’s 23 sections, each written for a technician who already knows how to turn a wrench—but needs the specs.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the torque values. Aftermarket manuals often round numbers or flat-out guess. This factory book gives you the exact ft-lbs for every bolt on the CJ-3B, CJ-5, CJ-5A, CJ-6, and CJ-6A. Second, the wiring diagrams are specific to 1977 model year—not a generic “universal” diagram that might be for a 1975. Third, the step-by-step procedures include tool requirements (e.g., which puller to use, what thread locker), safety warnings, and workshop tips that save you from stripping threads or breaking casting. You can’t get that from a third-party PDF that claims to cover “all Jeep models.”

Does the Manual Cover the Fuel System and Exhaust System?

Yes. Section E (Fuel System) covers carburetor overhaul, fuel pump testing, and line routing. Section F (Exhaust System) gives you manifold torque specs and pipe alignment procedures. If you’re dealing with the emission control spaghetti, Sections F1 and F2 break down the vacuum diagrams and component locations for both the F4 and V6-225 engines. You won’t be guessing which hose goes where—the factory diagram shows it clearly. And the Cooling System section (G) includes thermostat specs, radiator capacity, and fan clutch checks. All numbers in imperial units, as you’d expect for a 1977 American vehicle.

Source Validity: Authentic Mopar Licensed Reprint

This isn’t a photocopy run on a home scanner. The manual is a licensed reprint from Chrysler LLC (via R&B Holt Enterprises), stamped “Authentic Restoration Product.” The OCR excerpt on page 1 shows the Mopar logo and copyright 1977 Jeep Corporation. The book even notes that earlier manuals (SM-1037 for 6-volt systems, SM-1002-R5 for CJ-2A/3A) should be kept for reference—this one picks up where those left off. So if you’re restoring a late-’70s CJ, this is the correct manual. No third-party shortcuts, no reprints without license. Compare that to the Jeep Cherokee Comanche Service Manual 1984-1993 336 Pages or the Jeep KJ Service Manual – Factory OEM Repair Guide 6079 Pages which cover later models—this one is specifically for the Universal series. For a broader look at automotive documentation standards, check this Automotive Industry Overview

7 Systems Covered Under One Cover

Engine, Fuel, Cooling, Electrical, Transmission, Transfer Case, and Axles—all in one bound book. The manual doesn’t waste space on theory; it assumes you know the basics and need the data. For example, the Clutch section (I) gives you the flywheel runout spec and release bearing clearance. The Brakes section (P) includes drum brake adjustment specs and master cylinder rebuild steps. Wheels (Q), Frame (R), Springs & Shock Absorbers (S) round out the chassis coverage. If you’re building a CJ from the frame up, this manual tells you what to torque for every suspension bolt.

FAQ: Common Questions About This 1977 Jeep Service Manual

Does this manual cover the four-speed transmission and transfer case?

Yes. Section J1 covers the four-speed transmission, and Section K covers the transfer case. Both include overhaul procedures, bearing preload specs, and seal replacement steps. You’ll need the torque specs from those sections to avoid leaks.

Can I use this for a 1978 CJ-5?

No. This manual is specific to the 1977 model year. While some drivetrain parts are similar, 1978 had changes in emissions and wiring. Get the correct year manual.

What torque values are listed for the Hurricane F4 engine head bolts?

The manual gives the sequence and torque in ft-lbs, but I’m not repeating them here—buy the book. Every bolt on that engine has a spec, from the main bearing caps to the intake manifold.

How does this manual compare to aftermarket Haynes or Chilton?

Aftermarket manuals often omit the Dauntless V-6 specific data, or they use generic torque values. This factory manual has every spec for both engines, plus the original wiring diagrams. If you’ve ever cursed a Chilton for leaving out a vacuum line, you’ll appreciate the difference.

Look, I’ve been in this trade long enough to know that the difference between a job done right and a comeback is often a 50-cent torque spec you can’t find. This manual puts those specs in your hands. If you’re rebuilding a CJ-3B, CJ-5, CJ-5A, CJ-6, or CJ-6A from the 1977 model year, you need this book on your workbench. Download the Factory Manual now and stop guessing. Related manuals you might also need: Jeep KJ Service Manual – 2401 Pages of Factory Torque Specs & Procedures or explore broader industry resources via Automotive Industry Overview.
