Kubota V3300DI-B, V3300DI-TB 2007 Technical Manual

If you’ve ever wasted an afternoon because an aftermarket manual told you the wrong valve clearance, you know the feeling. That’s why I only trust factory documents when I’m building a customer’s engine. This Kubota V3300DI-B, V3300DI-TB 2007 Technical Manual is the real deal – 17 pages of pure OEM specs direct from KISC, issued September 2007. No reprints, no third-party guesswork. Just the numbers that Kubota used on the assembly line.

Servicing Specifications: The Numbers That Matter

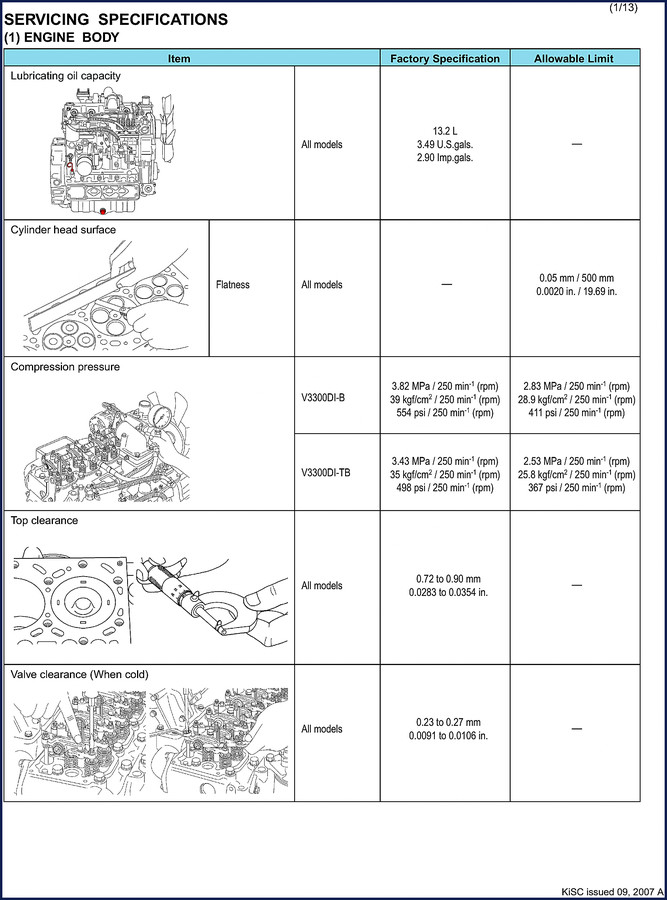

Page 1 of this manual gives you the engine body specs that separate a good rebuild from a come-back. Compression pressure for the V3300DI-B is 554 psi at 250 rpm, with an allowable limit of 411 psi. The V3300DI-TB runs 498 psi new, down to 367 psi. Valve clearance when cold is 0.0091–0.0106 inches across all models. Those are the numbers that tell you if your rings are seated or if you’re about to burn a valve. Every measurement has factory spec and allowable limit, so you know when to stop and when to walk away.

Tightening Torques: Why OEM Values Save Your Threads

You don’t guess torque on a diesel – you look it up. This manual dedicates a full section to tightening torques for the engine body, cylinder head, and all critical fasteners. I’ve seen guys strip M10 bolts in an aluminum block using a generic chart from the internet. The factory values here account for the specific materials and thread lengths Kubota uses. Follow these, and you won’t be helicoiling a head bolt hole at 6:00 PM on a Saturday.

Does This Manual Cover the Fuel System?

Not directly. This is a servicing specifications document, not a full workshop manual. It covers engine body, valve train, and torque specs only. If you need fuel injection timing or pump overhaul instructions, you’ll want a separate service manual. But for what it does – giving you every critical dimension and tolerance on the short block and cylinder head – it’s worth more than the paper it’s printed on.

3 Critical Measurements on Page 1

First, top clearance: 0.0283–0.0354 inches across all models. Second, cylinder head flatness: 0.0020 inches per 19.69 inches. Third, lubricating oil capacity: 3.49 U.S. gallons (2.90 Imperial gallons). Any one of these wrong and you’re looking at a blown head gasket or a seized engine. The manual doesn’t just list them – it gives you the allowable limit so you can decide whether to deck the head or replace it.

Get the Right Data Before You Turn a Bolt

I’ve been in the trade for 28 years and I still keep a stack of factory manuals on my bench. The Kubota V3300DI-B and V3300DI-TB are common in construction equipment and skid steers, and they’re tough engines – but only if you treat them with the right specs. This 17-page PDF is your insurance policy. Print it, laminate the torque page, and stick it in your toolbox. When a customer asks why you need 0.0091 inches of valve lash, you can show them the page.

Related Manuals

• Kubota STV32 STV36 STV40 2006 Technical Manual – Flat Rate Schedule
• Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual
• Kubota B21, B2320, B2620, B2920 Technical Manual – 292-Page Factory Service Manu

For general drivetrain knowledge, a Manual Transmission requires its own set of clearances and tolerances, but that’s a different manual. If you’re working on the transmission side, consider a Manual Transmission factory guide as well.

FAQ – Common Questions About This Manual

Does this manual cover the V3300DI-TB?

Yes. Both V3300DI-B and V3300DI-TB models are included with separate compression pressure specs.

How many pages does the manual have?

17 pages.

What sections are included?

Servicing specifications and tightening torques. The servicing section covers engine body, valve train, cylinder head, and all major clearances. The torque section lists fastener tightening values for the entire engine.

Is this a complete service manual for engine overhaul?

It is a specifications sheet, not a step-by-step repair guide. You will not find disassembly or assembly instructions. You will find every factory tolerance and torque value needed to verify measurements during a rebuild. For procedures, you need a separate workshop manual.

Stop wasting time on generic specs. Download the Factory Manual now and get the exact numbers that Kubota engineers wrote.
