Mitsubishi Pajero Sport Electrical Schematic – Know Your Wiring Before You Smoke It

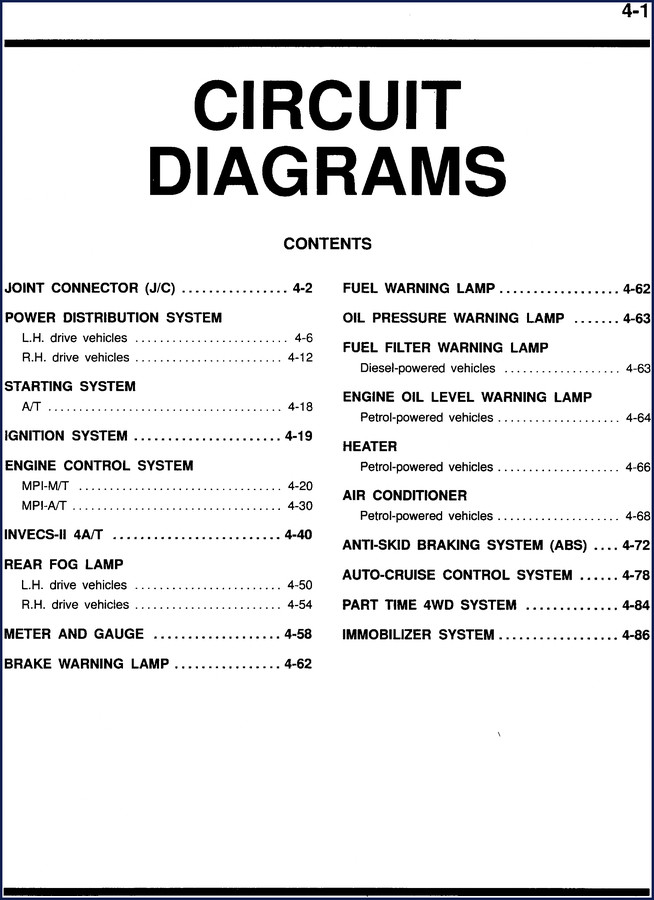

I’ve seen one too many guys burn a wire harness because they trusted a cheap aftermarket diagram. That mistake costs you a weekend and a pile of cash. The Mitsubishi Pajero Sport Electrical Schematic is what you need when you’re tracing a short, adding a winch light, or diagnosing a no-start on an INVECS-II transmission. This is the factory document – 87 pages of actual circuit diagrams, not some re-drawn mess with wrong pinouts.

Power Distribution: Left- and Right-Hand Drive Variations

You’d be surprised how often the power feed routing changes depending on whether the steering wheel is on the left or right. This schematic includes separate diagrams for L.H. drive and R.H. drive vehicles. The joint connector (J/C) diagrams on pages 4-2 to 4-5 show you exactly which terminals are populated in each connector block – C-11, C-12, C-63, C-71, and C-19. If you’ve ever tried to back-probe a connector with an aftermarket diagram that lists the wrong cavity, you know the value of this.

Starting System and A/T Specific Wiring

The starting system section covers the A/T version only – makes sense, since most Pajero Sports came with an automatic. It shows the starter relay path, inhibitor switch circuit, and engine ground points. Pair this with the Automotive Battery section if you’re chasing a slow crank issue – the manual traces the high-current path right from the battery terminal. You won’t find this level of detail in a generic repair book.

Engine Control System: MPI with Manual and Automatic Transmissions

Two separate schematics here: MPI-M/T and MPI-A/T. The ECU pinouts, sensor feeds, injector circuits, and throttle control wiring are all drawn out. If you need to back-probe the ECU connector for a camshaft position signal, this is where you live. For earlier models, check out Mitsubishi Pajero Sport 2000 Electrical Wiring Workshop Manual – Section: Circui – it covers the same architecture but with minor connector differences. For a more complete wiring breakdown, the Mitsubishi Pajero Sport 1999 Wiring Diagram Workshop Manual is also on this site.

ABS, Cruise Control, and Part-Time 4WD Systems

The anti-skid braking system (ABS) schematic on page 4-72 is worth the price alone. Wheel speed sensor circuits, ABS actuator wiring, and the ECU power/ground – all factory color codes. The auto-cruise control system (page 4-78) and part-time 4WD system (page 4-84) are also included. If you’re converting a Pajero Sport to full-time 4WD or troubleshooting a transfer case solenoid, this is your sheet music. And for another Mitsubishi electrical reference, the Mitsubishi Space Star Circuit Diagrams follows the same OEM schematic format.

Why Factory Wiring Diagrams Beat Aftermarket Copies

Aftermarket diagrams often drop connector pin numbers, use generic wire colors, or skip the joint connector pages entirely. This OEM document shows every terminal in every connector – including the note on page 4-2 that says “In actual vehicles, any of the terminals connected in J/C are used.” That’s the kind of disclaimer that saves you from chasing a ghost circuit. For a broader background on automotive electrical theory, the Automotive Industry Overview can fill in the fundamentals, but this schematic is the actual factory reference.

Who Needs This 87-Page Schematic Manual

If you’re a home-garage mechanic working on a Pajero Sport – especially the 2001 model year – and you’re comfortable reading a wiring diagram, this manual is for you. It assumes you know how to use a multimeter and understand relay logic. What it won’t give you is torque specs or step-by-step removal instructions – that’s a separate service manual. But for electrical diagnostics, it’s the only source you should trust.

Does this manual cover the diesel engine variants?

Yes, it includes diesel fuel filter warning lamp wiring.

What torque specs are included for electrical connectors?

This is an electrical schematic manual, not a torque spec manual. It focuses on wire color codes, connector pin assignments, and circuit paths. For torque values on sensors or ground bolts, you’d need the service manual. But the schematic gives you the exact location of every ground point and power feed, which is critical for diagnosing shorts and open circuits. The joint connector diagrams on pages 4-2 to 4-5 show the exact terminal numbers in each connector block – something aftermarket diagrams get wrong half the time.

You don’t need to guess where that wire goes. You don’t need to hunt through three different aftermarket PDFs. If you’re working on a Pajero Sport and need to trace a short or install an accessory the right way, buy this manual. Download the Factory Manual now and have the factory diagrams on your screen before you touch a multimeter.
