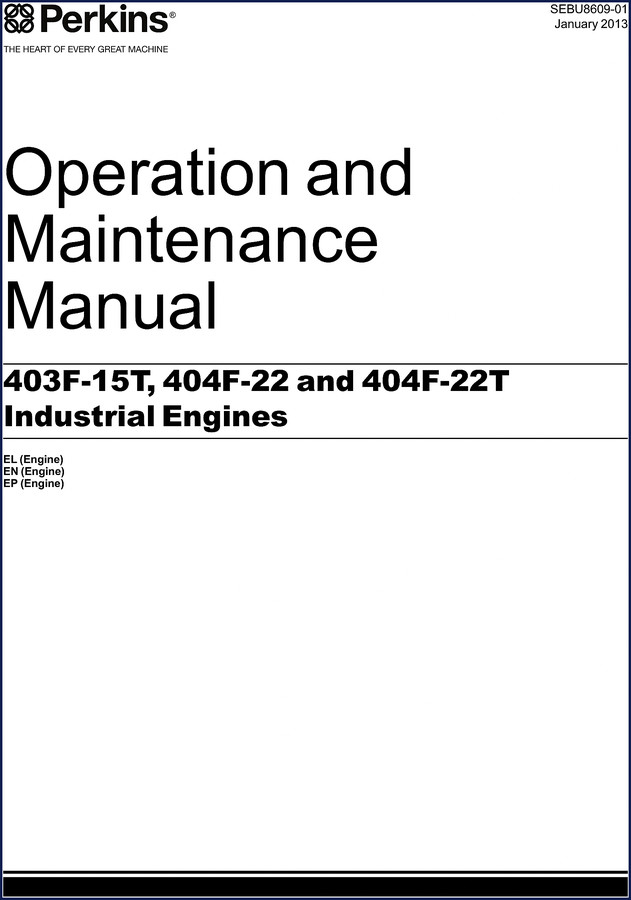

Perkins 403F-15T, 404F-22, 404F-22T 2013 Operators Manual

I have torqued more head bolts than most people have had hot dinners. If you are working on a Perkins 403F-15T, 404F-22, or 404F-22T industrial engine, you want the factory book. Not a reprint. Not a aftermarket summary. This is the actual 2013 Operators Manual, 108 pages of what Perkins publishes. Anything else is guessing, and guessing gets you a blown engine or a trip to the hospital.

Safety Messages and General Hazard Information

Pages 5 through 14 cover what you need to know before you even touch the key. Burn prevention, fire prevention, crushing prevention – it is all there. The manual spells out what happens when you skip the electrical system warnings on page 13. A shorted wire on a Engine that runs hot can kill you. Perkins wrote these warnings for a reason. Read them. I have seen guys lose fingers because they thought they knew better. Do not be that guy.

Cold Weather Operation: Preventing Freeze Damage

The Operation section includes a specific chapter on cold weather operation (page 52). Perkins tells you the exact coolant mixture for freezing temps, how long to let the glow plugs warm, and what to do if the block heater is missing. Ignore this and you are looking at cracked cylinder heads and a shop bill that dwarfs the cost of this manual. You have been warned.

What Refill Capacities Are Listed?

Turn to the Maintenance section, page 57. The refill capacities table gives you oil, coolant, and fuel tank volumes in Imperial units – quarts and gallons, not liters. That matters when you are at the parts counter and need to know how much 15W-40 to pour in. The manual also tells you which viscosity to use for your climate zone. No guesswork.

4 Critical Engine Starting Steps

The starting procedure on pages 45–47 is not a suggestion. Pre-lube, crank interval, wait-to-start light behavior – each step is timed. The manual explains why you must not crank longer than 30 seconds without a cool-down. I have replaced starters on engines where the operator just held the key. Follow the procedure and your starter stays alive.

Get the Product Identification Data from Page 26

Before ordering parts, you need the serial number and arrangement number. Page 26 shows exactly where to find them on the engine. Write them down. Without these numbers, you will order the wrong gasket or injection pump. This is the sort of detail aftermarket docs leave out. Perkins does not.

3 Maintenance Sections You Should Follow

The manual breaks maintenance into three parts: Refill Capacities (page 57), Maintenance Recommendations (page 70), and the Interval Schedule (page 73). The schedule tells you when to change oil, replace filters, and check valve lash. Stick to it and your 404F-22 will run tens of thousands of hours. Skip it and you are rebuilding early.

Most aftermarket manuals cut corners on torque values and wiring pinouts. This OEM Perkins document does not. The 403F-15T and 404F-22T turbocharged engines have specific boost pressure checks and fuel system priming steps that only the factory manual covers. I have watched guys chase intermittent faults on 404F-22 engines because they used a generic PDF. Do not waste your time.

Source Validity: Why OEM Matters

This is not a third-party copy. It is the original Perkins publication, SEBU8609-01, dated January 2013. The Operators Manual includes the full warranty section (page 99) and reference materials (page 103). If you have a warranty claim, you need this documentation. Perkins distributors verify claims using the data in this book. Without it, you are on your own. Related manuals you might need: Perkins 400C 2007 Operators Manual – Factory Specs & Safety”>Perkins 400C 2007 Operators Manual – Factory Specs & Safety, Perkins 854F-E34T 854E-E34TA Operation Manual”>Perkins 854F-E34T 854E-E34TA Operation Manual, and Perkins 800D Series Industrial Engines Operation Manual”>Perkins 800D Series Industrial Engines Operation Manual.

Is this the official Perkins manual for the 403F-15T, 404F-22, and 404F-22T?

Yes. This is the OEM factory manual, not a reprint. Part number SEBU8609-01.

Does this manual include electrical wiring diagrams?

No. This is an Operators Manual, not a Service Manual. It covers operation, maintenance, and diagnostics (engine diagnostics page 43) but does not contain full wiring diagrams. You would need the service manual for that. The Manual Transmission”>Manual Transmission topic is not covered here – this is all engine.

What torque specifications are listed in the manual?

Torque values appear in the maintenance and product information sections, but the manual is operation-focused. For detailed assembly torques you need the service manual. However, the refill capacities and fluid specs are given with exact quantities in quarts and gallons.

Does the manual cover both turbo and non-turbo engine variants?

Yes. The 403F-15T and 404F-22T are turbocharged; the 404F-22 is naturally aspirated. The manual addresses both, with separate cold weather operation notes, starting procedures, and fuel system advice for turbo models. Page 15 general information explains the differences. You would not use a generic Manual Transmission”>Manual Transmission guide for engine work – stick with this Perkins document.

Bottom line: If you own one of these Perkins industrial engines, get the manual that was written by the people who designed it. Download the Factory Manual from AutoRepairManuals today – it stays on your tablet or printed in your shop. No more guessing.
