Isuzu Axiom Workshop Manual – 2002 Factory Service Manual

Aftermarket manuals with missing torque specs or generic wiring diagrams waste your time and can cause real safety problems. You need the factory book that the dealer techs used, not a reprint that skips the critical notes on lifting points and bolt grades. This Isuzu Axiom Workshop Manual is the exact OEM document used by Isuzu service departments. If you’re pulling a differential, rebuilding the front suspension, or diagnosing an ABS fault, the data in this PDF came straight from the assembly line.

2100 Pages of Factory-Documented Repairs

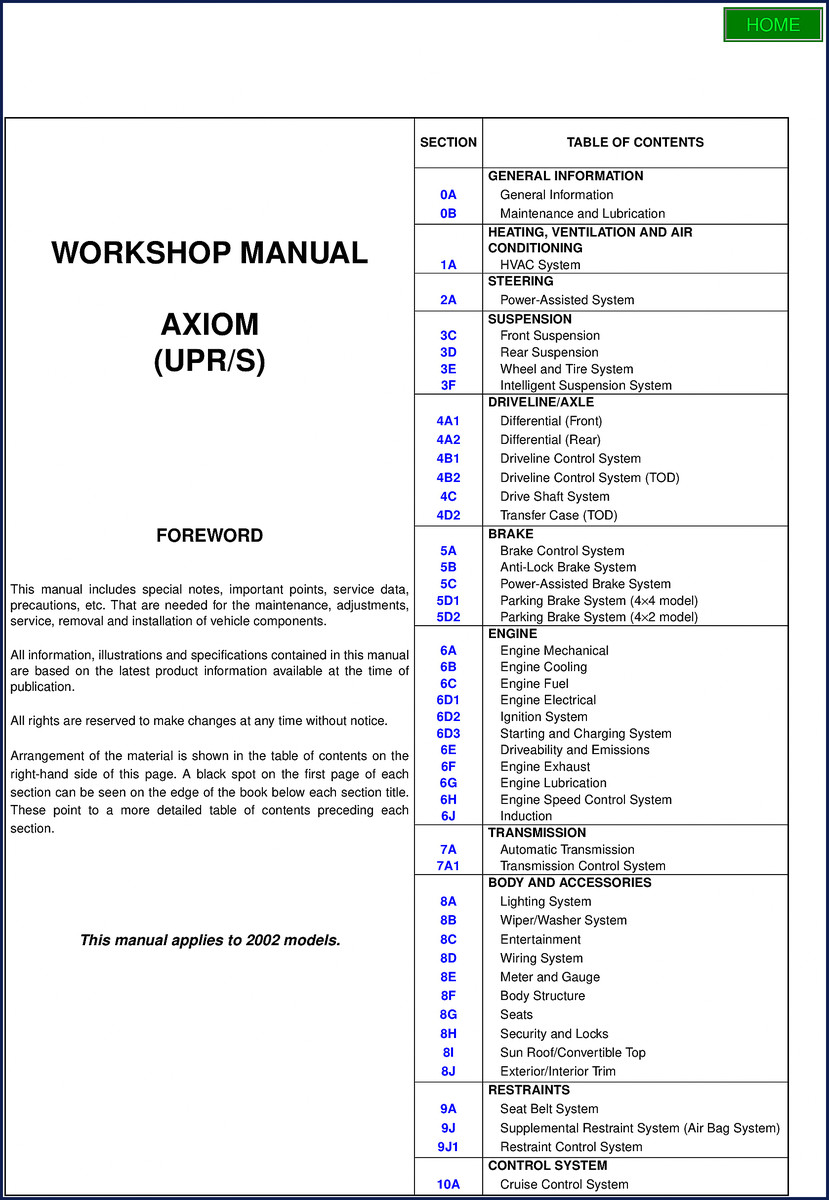

2100 pages cover every system on the 2002 Axiom. Sections are organized by major assemblies—Engine, Transmission, Suspension, Brakes, Body—with sub-sections for each component. The table of contents lists 0A (General Information) through 10A (Cruise Control). Under General Information you get Standard Bolts Torque Specifications on page 0A–11, lifting instructions on page 0A–9, and the service parts identification plate. This is the same book that a master technician would reach for when a customer rolls in with a clunk in the front end or a no-start condition.

Front and Rear Suspension: What the Factory Specs Say

Section 3 covers the suspension completely: 3C Front Suspension, 3D Rear Suspension, 3E Wheel and Tire System, and 3F Intelligent Suspension System. You get exploded views of the knuckle, control arms, and strut assemblies with OEM torque values for every bolt. If you’re replacing ball joints or shocks, the factory spec tells you the exact tightening sequence—not a generic range. For the intelligent suspension system (if equipped), the manual provides the diagnostic procedure for the control module and height sensors. That alone can save you from replacing parts that test fine.

Does This Manual Cover the Intelligent Suspension System?

Yes. Section 3F is dedicated to the Intelligent Suspension System. It covers the electronic control unit, the actuator on the shock absorber, and the system self-diagnostics. The manual gives you the resistance checks at the actuator connector and the voltage readings at the ECU. If the suspension warning light is on, you follow the step-by-step trouble tree in section 3F—no need to reverse-engineer circuits on a forum.

Get the Right Torque Data from Page 0A–11

Standard Bolts Torque Specifications on page 0A–11 list the torque values for metric bolts by grade (4T, 7T, 9T, 11T). This isn’t a generic chart pulled from a third-party database. It’s the Isuzu-specified torque for every bolt used on the Axiom. Cross-reference that with the specific bolt torque callouts in sections like 3C (Front Suspension) and 6A (Engine Mechanical) to make sure head bolts, control arm bolts, and drive shaft bolts are tightened to the correct ft-lbs. Skipping this step risks fastener failure or warped mating surfaces.

Engine Mechanical – From Assembly to Timing

Section 6A covers the 6VD1 engine (3.5L V6) used in the Axiom. You get the disassembly and reassembly procedure, piston ring gap specs, cam timing marks, and cylinder head bolt torque sequence. The manual includes the specific tightening stages (e.g., 22 ft-lbs then 90 degrees) that aftermarket sources often omit. For the cooling system, section 6B gives you the bleed procedure and thermostat specs. The fuel system section 6C covers the returnless fuel rail and pressure test procedure.

Who Needs This Manual and Why

If you own a 2002 Isuzu Axiom and you’re doing your own suspension work, engine swaps, or brake system repairs, this manual is your workbench reference. Beginners should start with the General Information section to learn lifting and safety procedures before diving into repairs. Experienced mechanics will value the wiring diagrams in section 8D and the ABS diagnostics in section 5B. For the shop owner, having this manual on a tablet means your techs stop guessing on control arm torque and start finishing jobs correctly. Related resources you may need: Isuzu AI-4JJ1X, AJ-4JJ1T, BJ-4JJ1X, BU-4JJ1T Workshop Manual – 278 Pages, Isuzu 4JK1, 4JJ1 2007 Workshop Manual – 644 Pages of OEM Specs, and Isuzu TF Series 2007 Workshop Manual – Factory Specs for JR405E. For an industry perspective on why factory manuals matter, see this Automotive Industry Overview and Automotive Industry Overview.

Source Authenticity: OEM vs. Aftermarket

This PDF is a direct scan of the original Isuzu Workshop Manual. It carries the same part number and layout as the book that shipped with dealers in 2002. Aftermarket manuals often use generic illustrations and omit steps like “Install the right front suspension crossmember” with the specific torque sequence. In this manual, every illustration includes the arrow notation (page 0A–2) and part numbers. If you want to know which bolt goes where and how tight, this is the only source that matches the factory build.

Frequently Asked Questions

Does this manual cover the 2002 Isuzu Axiom with the TOD transfer case?

Yes. Section 4D2 covers the Transfer Case (TOD). It includes the hydraulic control system, shift motor testing, and torque converter clutch diagnostics.

What about the rear differential?

Section 4A2 covers the rear differential with backlash and preload specs.

Is this the same manual used by Isuzu dealerships?

Yes. This is the original OEM workshop manual, not a third-party summary. It contains the same data the factory technicians used to service the Axiom during its production years.

How do I locate the correct torque specification for a specific bolt?

Start with the General Information section (0A) for standard bolt torque tables by grade, then match the bolt location in the specific system section (e.g., Suspension 3C) where the manual lists the exact value for that particular fastener. The index at the front of each section helps you find it fast.

Stop chasing bad information from generic repair sites. Download the factory manual and get back to turning wrenches with the right data in front of you. Download the Factory Manual from AutoRepairManuals and keep your Axiom on the road.
