Calavar 38AG 1994 Service Manual – What You Actually Need on the Bench

Let me tell you exactly why I’m standing here throwing this manual at you. You’ve got a 38AG in the bay, customer’s waiting, you’ve got a hydraulic leak or a no-start, and the manual you pulled off some random site gives you half the torque specs and a wiring diagram that doesn’t match the serial number. That’s wasted time. This Calavar 38AG 1994 Service Manual is the one that comes from the factory—165 pages, printed by Calavar Corporation in September 1994. It’s the same book that was supposed to stay in the tube on the machine. If you’re working on a Condor 38AG with gas or diesel engine starting at serial number 1563, this is your only reliable source.

Model 38AG: What This 1994 Service Manual Covers

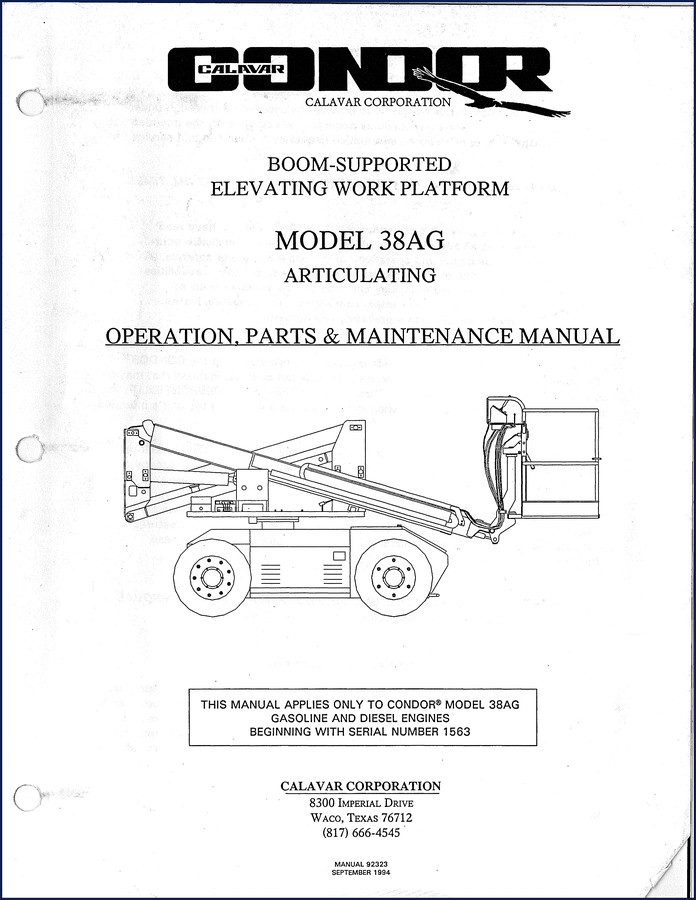

Page 1 tells you straight: this applies to the Calavar Condor model 38AG articulating boom work platform. Gasoline and diesel engines, beginning with serial number 1563. That’s important because later revisions may have different parts or procedures. You get the operation, parts, and maintenance manual all in one bound document. No separate repair manual to hunt for—the factory decided you need everything to keep that lift running. The manual is 165 pages of actual technical content, not fluff. I’ve seen guys try to use later 40-series books on a 38AG and end up with the wrong cylinder rebuild specs. Don’t do it.

Safety Warnings You Cannot Skip

Page 2 starts with a big block of text that says “THE OPERATOR’S MANUAL MUST BE RETAINED ON THE UNIT AT ALL TIMES.” That’s not optional. If you’re working on this lift and you haven’t read the safety section, you’re asking for a pinch or a fall. The manual also references ANSI/SIA 92.5-1992 and federal/state regulations. I’ve seen techs bypass limit switches because they didn’t read the decal requirements. That’s how you get a boom drop. The manual tells you what each decal means and where it goes. Use it.

Parts Identification and Ordering

Every part on that 38AG has a Calavar part number in this manual. You need a new cylinder seal kit? The manual’s parts section lists the exact kit number and cross-references to the maintenance section. Don’t trust aftermarket catalogs—they guess. The factory manual gives you the original numbers. If you’re ordering through Calavar (now part of Terex), you give them that number from the book. Page 3 even includes the warranty statement, so if you’re doing a warranty claim, you’ve got the documentation right there.

3 Critical Sections for Every Technician

1. Operation Procedures – Not for the owner? Wrong. You need to know how the upper and lower controls are supposed to act. If the boom drifts, you don’t just swap a valve. You check the control logic per the manual.
2. Maintenance Schedules – Torque values, fluid capacities, filter part numbers. All three in imperial units. The manual tells you when to change hydraulic oil based on hours of operation, not calendar dates.
3. Parts Breakdown – Exploded diagrams with callouts. No guessing which o-ring fits where. If you lose a part, you look it up, order it, move on.

The manual is 165 pages but it’s dense. You won’t waste time flipping through fluff.

OEM Authenticity vs. Aftermarket Copies

I’ve had aftermarket manuals that were photocopies of photocopies—torque specs blurred, wiring diagrams unreadable. This Calavar 38AG 1994 Service Manual is a direct scan of the original factory publication. You get the same print quality as the book that came with the machine. The page numbers match, the callouts are crisp, and the torque values are in lb-ft, not newton meters that you have to convert. No third-party garbage. If you want to keep that boom lift in service for another decade, you use the factory book.

Is This Manual for Gas or Diesel Engines?

Both. The manual covers both gasoline and diesel engine options for the 38AG. Specific procedures for each are called out. If you’re swapping a gas engine for a diesel, you still need this manual for the chassis and hydraulic system because that part doesn’t change. But the engine sections are separate and clearly marked. No ambiguity.

Related Manuals You Might Need

If you’re running a fleet of Calavars, check out these other OEM manuals specific to your equipment: Calavar RT3175E Service Manual – OEM Factory Repair Guide, Calavar 46EN 1983 Service Manual – OEM Factory Shop Manual, Calavar 40, 48, 50, 56, 58 Service Manual | 528 Pages. For general knowledge on manual transmissions used in some older models, see Manual Transmission and Manual Transmission.

FAQ

Does this manual include torque specs for all bolts?

Yes, for all critical fasteners in the sections where torque matters—cylinder mounts, wheel bolts, and control valve fittings.

Can I use this manual for a 38AG with serial number below 1563?

No—the manual specifically states it applies to serial number 1563 and above. Earlier machines have different hydraulic configurations and part numbers. Using this manual on an older unit could result in buying the wrong seals or mis-adjusting the boom. If your serial is lower, you need the earlier edition. The introduction on page 1 makes that clear, and the parts breakdowns won’t match. Don’t risk it—check your serial plate first.

Look, if you’re serious about keeping that 38AG running without chasing gremlins or buying wrong parts, you need the factory data. Download the Factory Manual now and get the exact specifications Calavar put into this machine.
